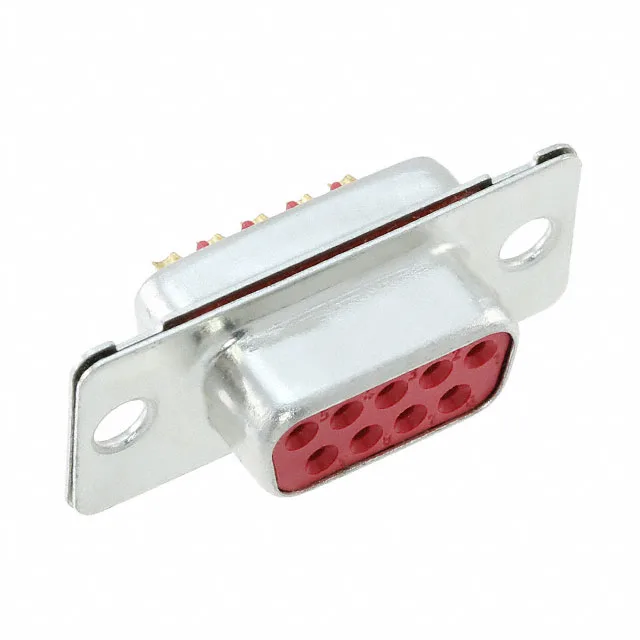

Molex 1731100011
MPN1731100011
Active
CONN D-SUB RCPT 9POS SLDR CUP
$16.52Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesF, FCT 173110
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | F, FCT 173110 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A |
| Contact form | Machined |
| IP rating | IP67 - Dust Tight, Waterproof |
| Wire gauge | 20 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -25°C ~ 70°C |
| Color | Red |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Brass, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 31.5µin (0.80µm) |
