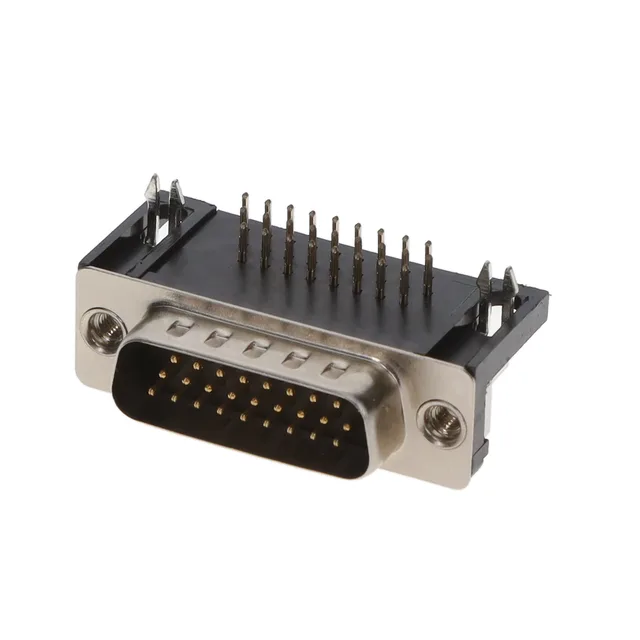

Molex 1731130105
MPN1731130105
Active
FCT HD DSUB RA PC PLG 26 PN W/CL
$17.62Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series173113
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 173113 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | D-Sub, High Density |
| Current rating | 3A |
| Contact form | Stamped |
| Shell size, connector layout | 2 (DA, A) High Density |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Thermoplastic, Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (M3) |
| Rows | 3 |
| Backset spacing | 0.450\" (11.43mm) |
| Positions | 26 |
| Contact finish thickness | Flash |
