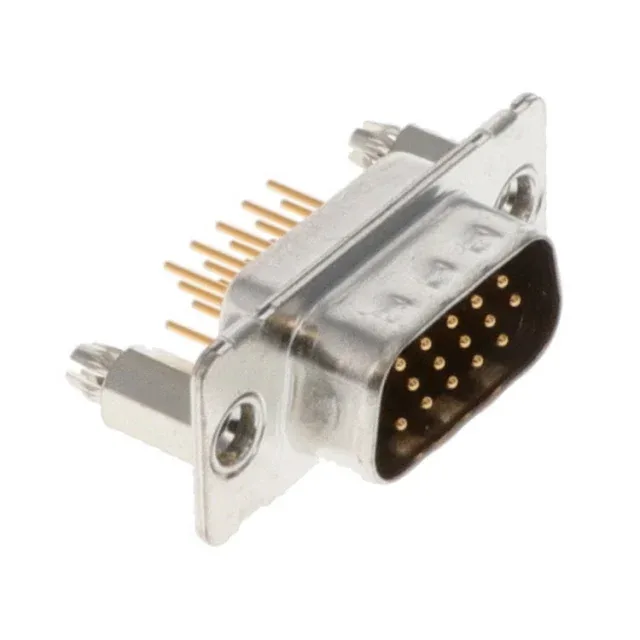

CONN D-SUB HD PLUG 15P VERT SLDR
$11.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | HPD, 173113 |
| Gender | Signal |
| Mounting type | Through Hole |
| Connector type | D-Sub, High Density |
| Voltage rating | 1000V |
| Current rating | 5A |
| Contact form | Machined |
| Ingress protection | IP20 |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 130°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Thermoplastic, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Package | Bulk |
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | 31.5µin (0.80µm) |
Sourcing this connector
Molex 1731130141 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
