Molex 1731130154
MPN1731130154
Active

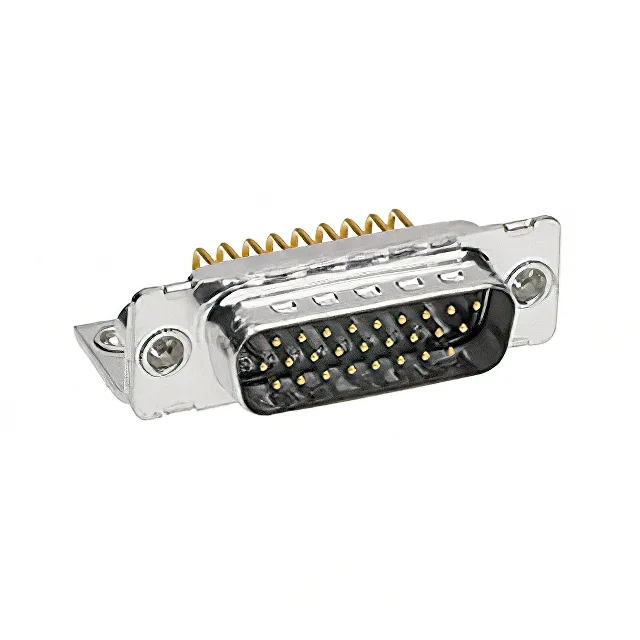

CONN D-SUB HD PLUG 26P R/A SLDR
$29.69Ref. price · indicative, final on quote
SeriesHPD, 173113
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HPD, 173113 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | D-Sub, High Density |
| Voltage rating | 1000V |
| Current rating | 5A |
| Contact form | Machined |
| IP rating | IP20 |
| Shell size, connector layout | 2 (DA, A) High Density |
| Operating temperature | -55°C ~ 130°C |
| Color | Black |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Thermoplastic, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Package | Bulk |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40) |
| Rows | 3 |
| Backset spacing | 0.314\" (7.98mm) |
| Positions | 26 |
| Contact finish thickness | 31.5µin (0.80µm) |
