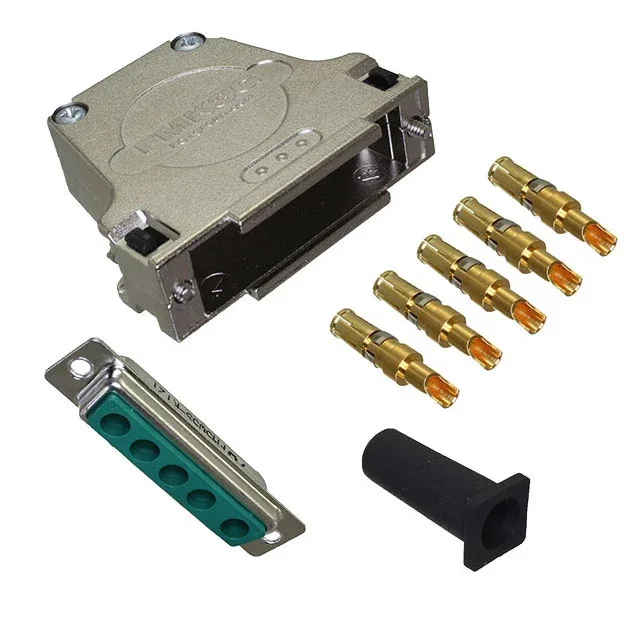

Molex 1731140090
MPN1731140090
Active
CONN D-SUB RCPT 5POS SLDR CUP
$30.46Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFMK, FCT 173114
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FMK, FCT 173114 |
| Type | Power |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Current rating | 20A |
| Contact form | Machined |
| Wire gauge | 12-16 AWG |
| Shell size, connector layout | 3 (DB, B) - 5W5 |
| Operating temperature | -55°C ~ 130°C |
| Color | Green |
| Contact material | Copper Alloy |
| Dielectric material | Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Cable Clamp, Mounting Hardware, Strain Relief |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 1 |
| Positions | 5 (Power) |
| Contact finish thickness | 4.00µin (0.100µm) |
