Molex 1731140099
MPN1731140099
Active

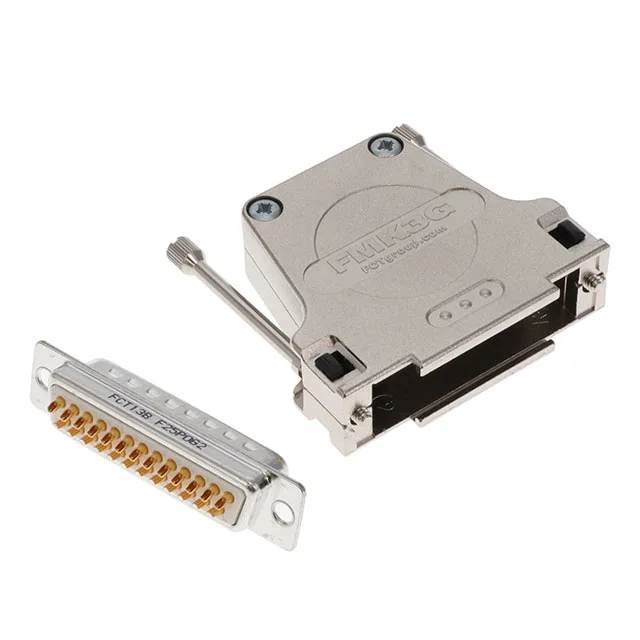

CONN D-SUB PLUG 25POS SLDR CUP
$25.18Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFMK, FCT 173114
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FMK, FCT 173114 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| Wire gauge | 20 AWG |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 125°C |
| Color | White |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Backshell, Cable Clamp, Grounding Indents, Mounting Hardware, Strain Relief |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 25 |
