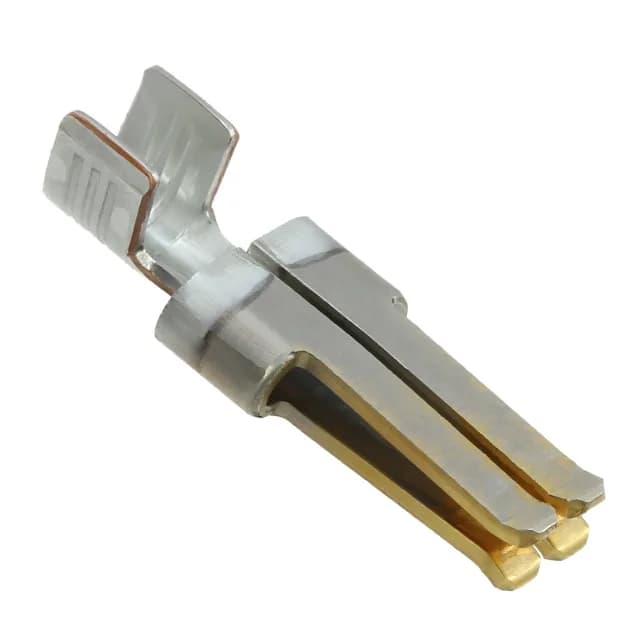

Molex 1736934632

Molex EXTreme Ten60Power 1736934632, Power Socket Contact, 55 A, 10-12 AWG

MPN1736934632
Active

Molex EXTreme Ten60Power 173693 series, 1736934632, Power Socket Contact, Socket, 10-12 AWG, Gold 30.0µin (0.76µm), Crimp, 55 A.

$1.07Ref. price · indicative, final on quote
Molex 1736934632 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEXTreme Ten60Power 173693
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1736934632 specifications
ParameterValue
TypePower
SeriesEXTreme Ten60Power 173693
Current rating55 A
Wire gauge10-12 AWG
PackageTape & Reel (TR); Cut Tape (CT)
Pin or socketSocket
Contact finishGold
Contact terminationCrimp
Contact finish thickness30.0µin (0.76µm)

Product details

Power socket contact for the EXTreme Ten60Power line

The Molex 1736934632 is a power socket contact from the EXTreme Ten60Power 173693 series, built for 10-12 AWG wire and rated 55 A. This is the crimp terminal that goes into the receptacle housing — it's the current-carrying piece, not the housing itself.

Plating and termination

Crimp termination for 10-12 AWG wire.

Sourcing and fit note

This is the socket contact for the EXTreme Ten60Power receptacle housings. The mating half is the pin terminal (separate order code) inserted into the header. Same series, same 55 A rating on the pin side. Available in Tape & Reel or Cut Tape packaging.

Frequently asked questions

What wire gauge does this contact accept?

It accepts 10-12 AWG wire. The crimp barrel is sized for that range; use the correct die set from the series application tooling.

Is 1736934632 ROHS3 compliant?

Yes, it is ROHS3 Compliant, covering the latest restricted substance exemptions including the four phthalates.
