Molex 190700044
MPN190700044
Active

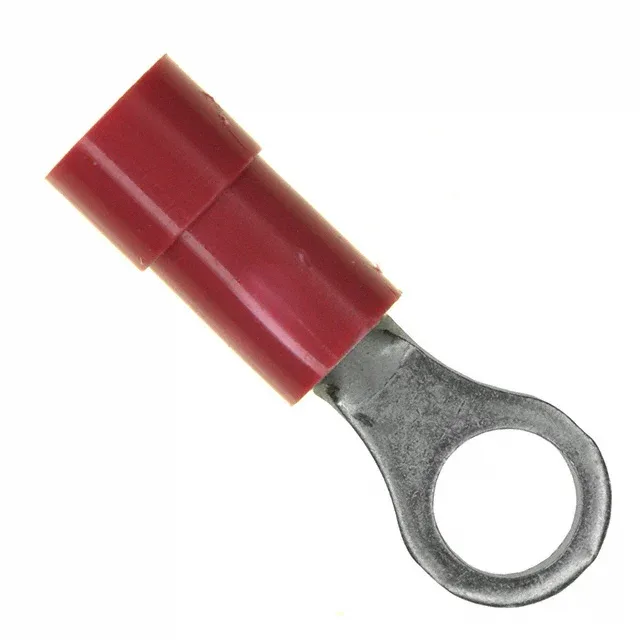

CONN RING CIRC 18-22AWG #8 CRIMP
$0.33Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesInsulKrimp
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | InsulKrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.264\" (6.70mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.028\" (0.71mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 0.807\" (20.50mm) |
| Insulation diameter | 0.145\" (3.68mm) |
