Molex 190730065
MPN190730065
Active

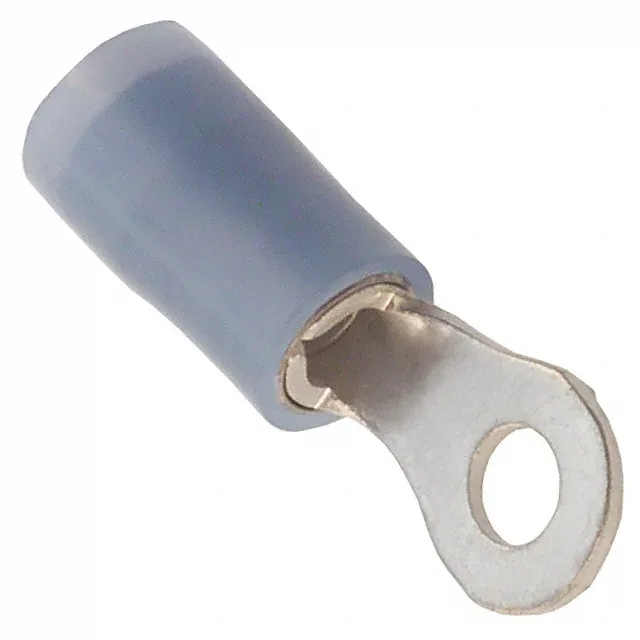

CONN RING CIRC 14-16AWG #4 CRIMP
$0.43Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAvikrimp
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Avikrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.270\" (6.86mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 4 Stud |
| Contact finish | Tin |
| Length - overall | 0.770\" (19.56mm) |
| Insulation diameter | 0.170\" (4.32mm) |
