Molex 190990035
MPN190990035
Active

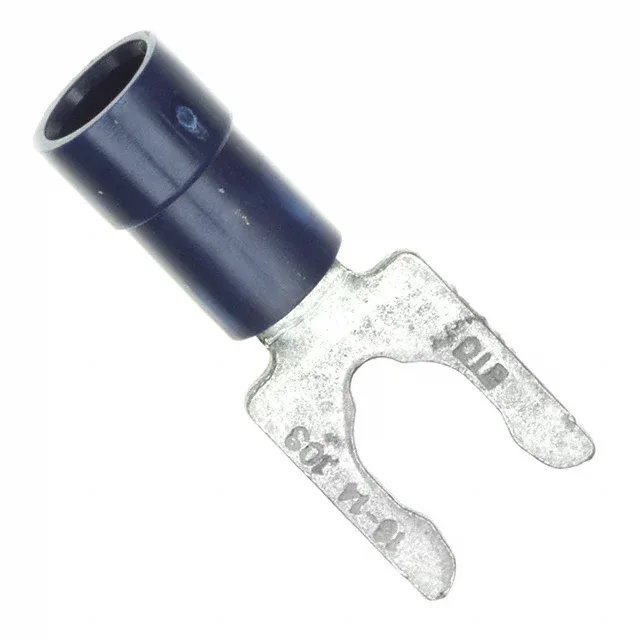

CONN SPADE TERM 14-16AWG #10 BLU
$0.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesInsulKrimp
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | InsulKrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.330\" (8.38mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 0.919\" (23.34mm) |
| Insulation diameter | 0.175\" (4.45mm) |
| Length - termination | 0.405\" (10.29mm) |
| Tongue inside opening | 0.156\" (3.96mm) |
| Length - ring center to termination | 0.261\" (6.63mm) |
