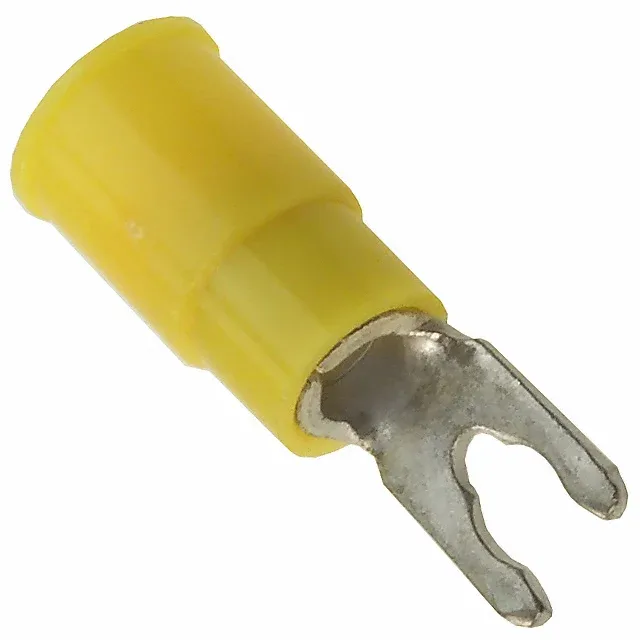

Molex 190990044
MPN190990044
Active
CONN SPADE TERM 10-12AWG #6 YEL
$0.45Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesInsulKrimp
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | InsulKrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 0.955\" (24.26mm) |
| Insulation diameter | 0.250\" (6.35mm) |
| Length - termination | 0.550\" (13.97mm) |
| Tongue inside opening | 0.114\" (2.90mm) |
| Length - ring center to termination | 0.230\" (5.84mm) |
