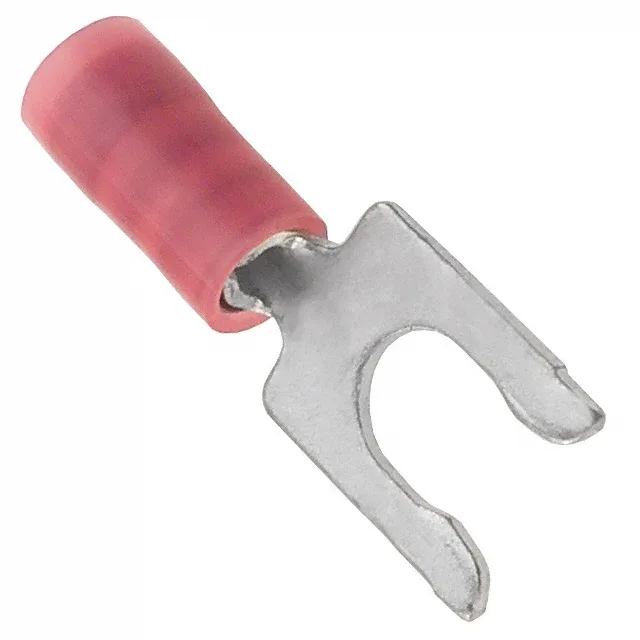

CONN SPADE TERM 18-22AWG #10 RED
$0.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Avikrimp |
| Mounting type | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.330\" (8.38mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 0.921\" (23.39mm) |
| Insulation diameter | 0.144\" (3.65mm) |
| Length - termination | 0.400\" (10.16mm) |
| Tongue inside opening | 0.156\" (3.96mm) |
| Length - ring center to termination | 0.261\" (6.63mm) |
Sourcing this connector
Molex 191150014 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
