Molex 191210027
MPN191210027
Active

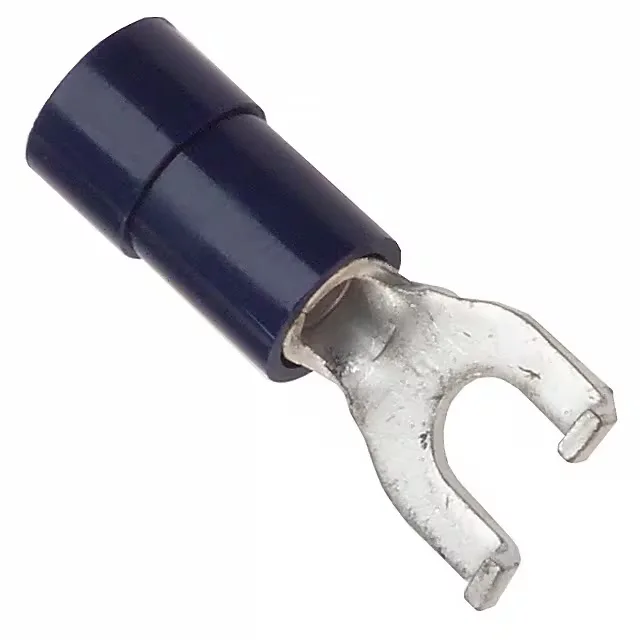

CONN SPADE TERM 14-16AWG #6 BLU
$0.45Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesInsulKrimp
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | InsulKrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.301\" (7.65mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 0.795\" (20.19mm) |
| Insulation diameter | 0.175\" (4.45mm) |
| Length - termination | 0.400\" (10.16mm) |
| Tongue inside opening | 0.146\" (3.71mm) |
| Length - ring center to termination | 0.209\" (5.31mm) |
