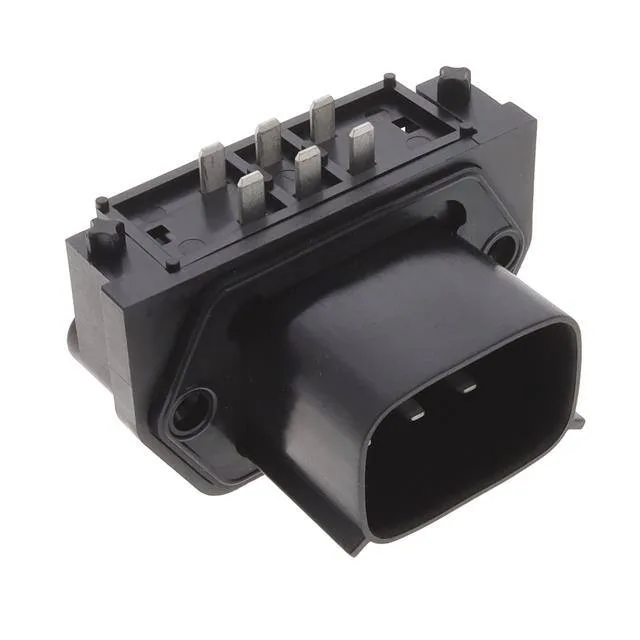

Molex 194370040
MPN194370040
Active
CONN HEADER R/A 6POS 7.62MM
$22.78Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX150L 19437
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX150L 19437 |
| Type | Male Blade |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| IP rating | IP67 - Dust Tight, Waterproof |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.318\" (33.48mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.300\" (7.62mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
