3-position shrouded header, 5.70 mm pitch
The 200241-1113: Rated 600 VAC/DC with tin-plated mating contacts, the through-hole header carries a UL94 V-0 LCP housing and includes a board guide and glow-wire compliance.

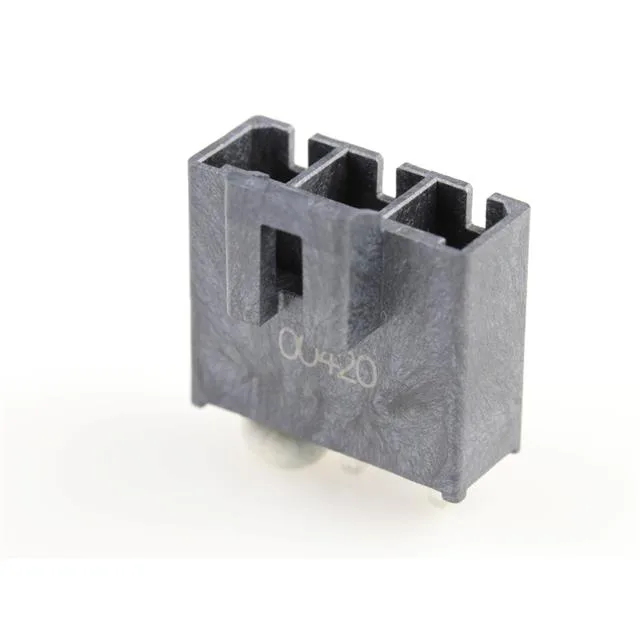

Molex 200241-1113 Mega-Fit Header, 3-Pos 5.70mm
MPN200241-1113
Active
Molex Mega-Fit 200241 header, order code 200241-1113, 3 positions, single row, 5.70 mm pitch, 600 VAC/DC, tin-plated mating contacts, through-hole, solder termination.
$2.2800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mega-Fit 200241 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Copper |
| Insulation color | Black |
| Insulation height | 0.602\" (15.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Box |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.224\" (5.70mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.127\" (3.23mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Product details
Frequently asked questions
What compliance documentation does Molex provide for the 200241-1113?
RoHS and REACH documentation is available from Molex; no specific certification entry is on this record beyond the material ratings.
