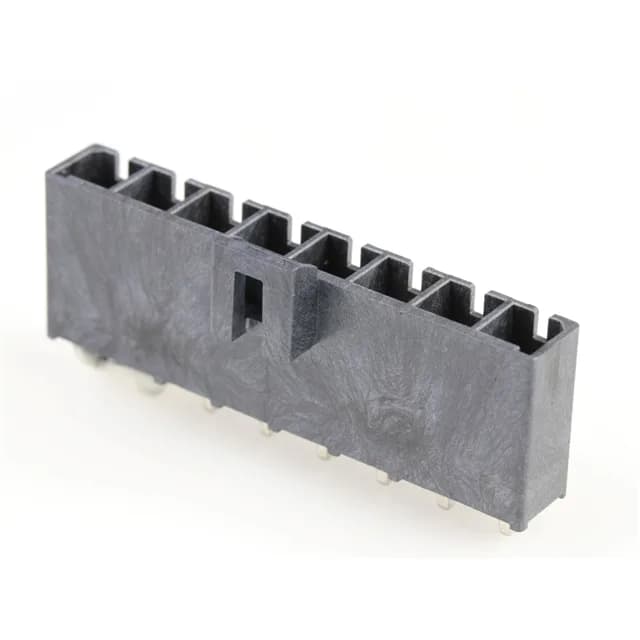

8-Circuit Power Header with 5.70mm Pitch
The 2002411118: The 5.70mm pitch is the widest in the Mega-Fit lineup, which means each contact can carry more current before the temperature rise hits the LCP housing limit. Rated 600VAC/DC, this header handles industrial power rails, motor drives, and battery interconnect where the voltage stays below that ceiling.
Current Rating Depends on Your Wire Choice
The header itself doesn't have a fixed amp rating — the current limit is set by the wire gauge and the mating terminal. In the Mega-Fit system, a 14 AWG wire with the matching crimp terminal can carry up to 23 A per circuit at a 30°C temperature rise. For 18 AWG, budget around 13 A.
Latch Holder and Shrouded Walls for Vibration
Flame Rating and Glow Wire Compliance
It's also glow wire compliant, a requirement for household appliances and white goods where a fault could ignite the connector.
RoHS3 compliant.
