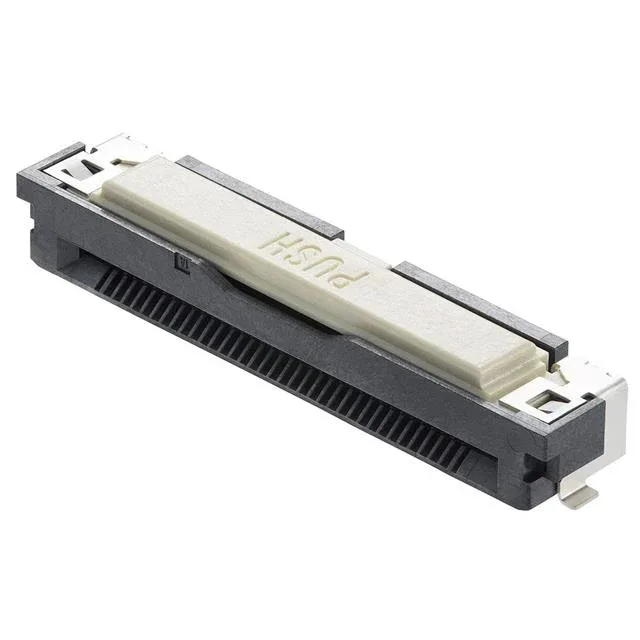

Molex 2004850480
MPN2004850480
Active
0.5 ONE-TOUCH RA 80P
$4.86Ref. price · indicative, final on quote
SeriesEasy-On 200485
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 200485 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 105°C |
| Housing color | Black |
| Actuator color | Natural |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Liquid Crystal Polymer (LCP), Glass Filled |
| Height above board | 0.176\" (4.46mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Auto Lock, Push Button Release |
| FFC, FCB thickness | 0.30mm |
| Positions | 80 |
| Contact finish thickness | 3.94µin (0.10µm) |
