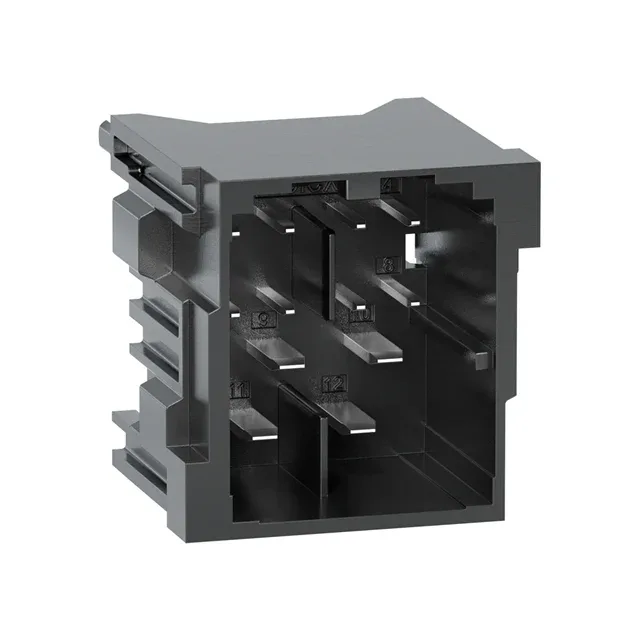

Molex 2005020121
MPN2005020121
Active
STAK50 ASSY RA HDR SOLDER
$5.32Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesstAK50h 200502
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | stAK50h 200502 |
| Type | Male Blade |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 14VDC |
| Current rating | 13A, 23A |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.063\" (27.00mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Rectangular |
| Rows | 4 |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Tin |
