Right-angle 5-row header for automotive power distribution

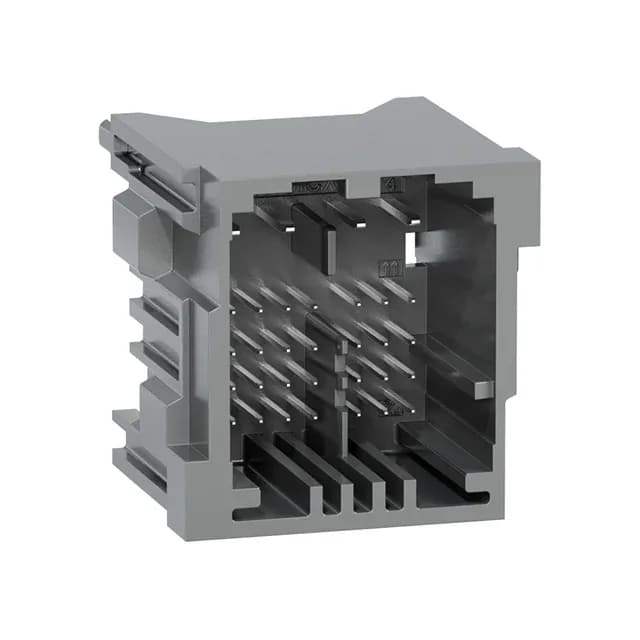

Molex 2005020323 is a 32-position, 5-row right-angle through-hole header from the stAK50h 200502 series, designed for board-to-cable/wire automotive interconnects. The dual current rating (3A and 13A) reflects a mixed-power layout: lower-current signal circuits share the same header with higher-current power feeds, all at a 14VDC system voltage typical of automotive electrical architectures. The gray glass-filled syndiotactic polystyrene (SPS) housing carries a board guide feature for automated placement, and the tin-plated mating contacts suit high-volume production where moderate mating cycle life is acceptable.
Dual current rating and 14VDC system fit
Rated 3A and 13A per contact — the 13A path handles power distribution within the connector's thermal limits, while the 3A path serves signal or low-power circuits. The 14VDC rating aligns with standard automotive battery and load-dump conditions. The 0.102" (2.60 mm) solder post length provides enough stand-off for through-hole wave soldering without compromising the board-side clearance.
