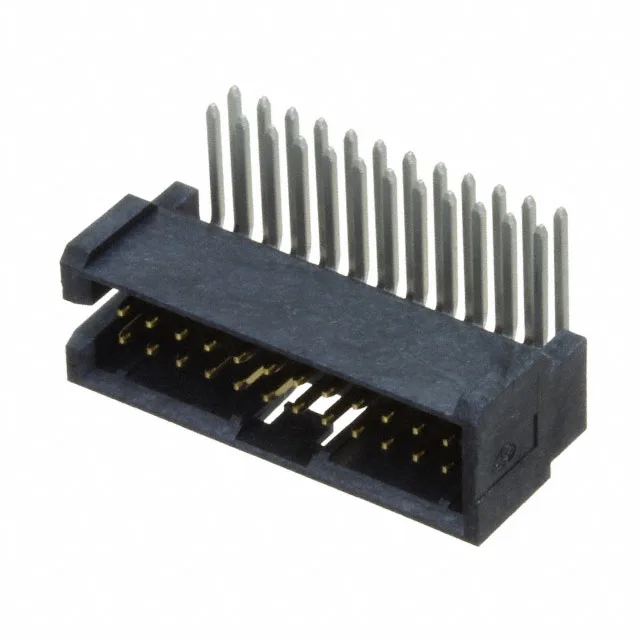

Molex Slim-Grid 201021 header, order code 2010212024, 24 positions, dual row, 1.27 mm pitch, 125 V, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Slim-Grid 201021 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 125V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.213\" (5.40mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 24 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 2.00µin (0.051µm) |
The 2010212024 is the 24-position member of Molex's Slim-Grid 201021 board-to-board header line, arranged in two rows at 1.27 mm pitch. It mounts through-hole right-angle with a 4-wall shroud and latch holder for retention. Gold-plated mating contacts are rated 125 V.
The 4-wall shroud and latch holder protect the mating interface from misalignment and vibration during board-to-board stacking.
RoHS and REACH compliance documentation is available from Molex for the Slim-Grid 201021 series.
