Molex 2011962181 — Connector Housings

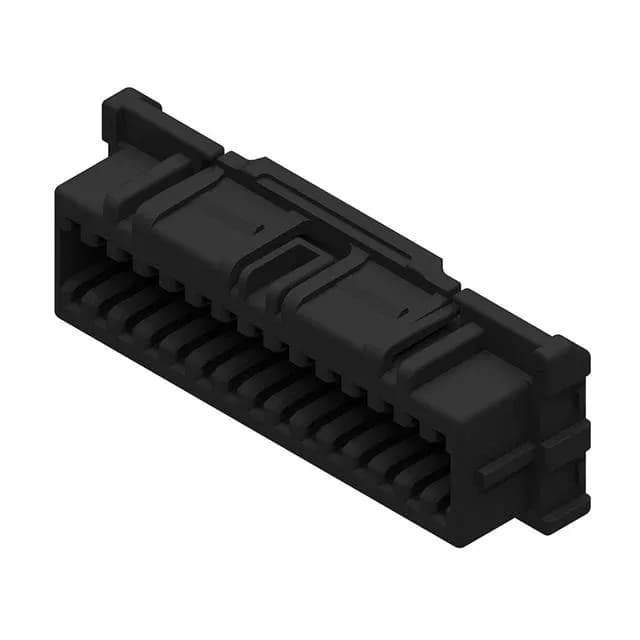

Molex Spot-On 2.0 2011962181, 18-Position Receptacle Housing

MPN2011962181
Active

Molex Spot-On 2.0 201196 series, 2011962181 receptacle housing, 18 positions, 2 rows, 2.00 mm pitch, free-hanging, latch lock, crimp termination, black PBT/Polyester, tray.

$0.8000Ref. price · indicative, final on quote
Molex 2011962181 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSpot-On 2.0 201196
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2011962181 specifications
ParameterValue
SeriesSpot-On 2.0 201196
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Polyester
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageTray
Rows2
Contact terminationCrimp
Positions18

Product details

The Molex 2011962181 is an 18-position, dual-row receptacle housing from the Spot-On 2.0 201196 series, designed for free-hanging (in-line) wire-to-board or wire-to-wire harness applications. The crimp termination gives you field-serviceable, repairable harnesses rather than a molded-overmold assembly.

For the wire side, you need the Spot-On 2.0 crimp terminal — a female socket that accepts a specific wire gauge range (check the terminal datasheet for the exact AWG range and strip length).

The 2011962181 carries an Active product status and is RoHS3 compliant.

Frequently asked questions

What terminals fit the 2011962181 housing?

The 2011962181 accepts Spot-On 2.0 female crimp terminals (female socket contacts). The terminals are ordered separately — the housing does not include them. Check the Spot-On 2.0 terminal datasheet for the specific wire gauge range and strip length that matches your harness build.
