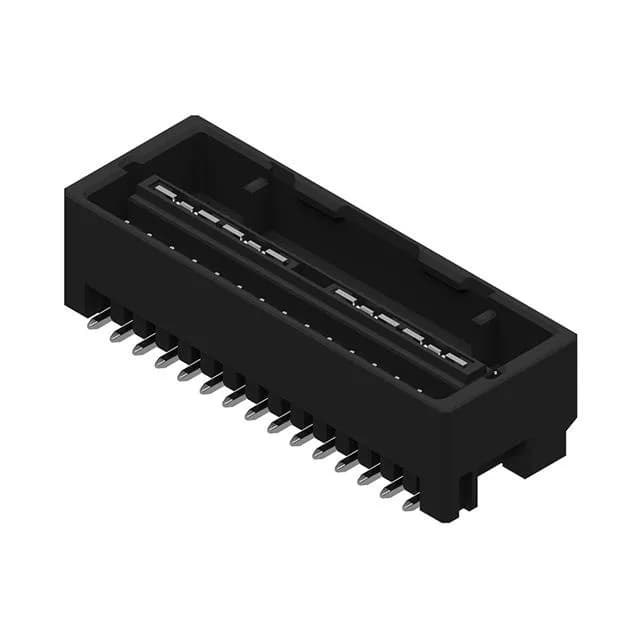

10-position dual-row header with latch and full shroud
The 2011970101 is a 10-position, dual-row header from the Molex Spot-On 2.0 201197 series. It mates with a corresponding receptacle to form a board-to-cable/wire connection. The 2.00mm pitch sets the PCB footprint and the per-contact current ceiling; with tin-plated contacts, the current rating varies by wire gauge, so the limiting factor is the wire size in the mating half, not the header itself. A latch holder fastening type and full 4-wall shrouding protect the male pins from damage during handling and prevent accidental unmating under vibration. The shroud also guides the receptacle into alignment, reducing insertion force on the pins.
SMT termination with solder retention for reflow
Termination is surface-mount solder, with a solder retention feature that holds the header in place during reflow. This eliminates the need for secondary hold-downs and improves placement accuracy in automated assembly.
