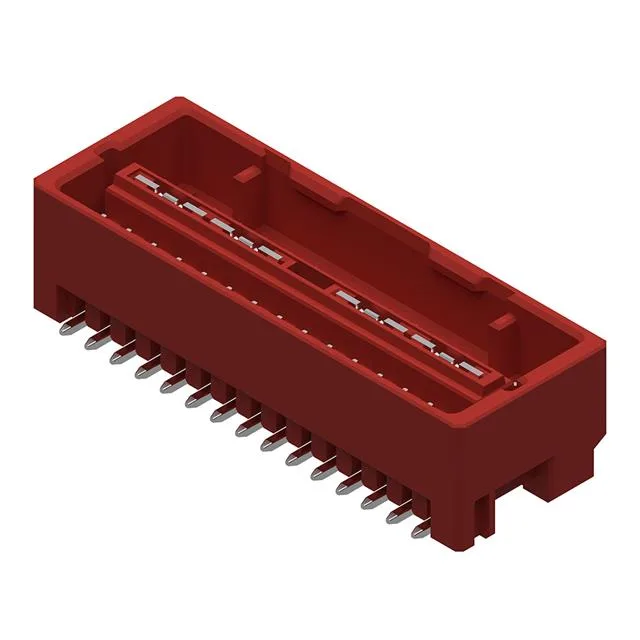

Molex Spot-On 2.0 201197 header, order code 2011970282, 28 positions, dual row, 2.00 mm pitch, 250 V, tin-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Spot-On 2.0 201197 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Red |
| Insulation height | 0.354\" (9.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 2011970282 is the 28-circuit member of Molex's Spot-On 2.0 201197 header line, a board-to-cable/wire interconnect with a shrouded 4-wall housing and latch holder fastening. Tin-plated mating contacts rated 250 V, dual-row 2.00 mm pitch, surface-mount solder termination with solder retention features.
