Molex 2016450121 — Pin Headers

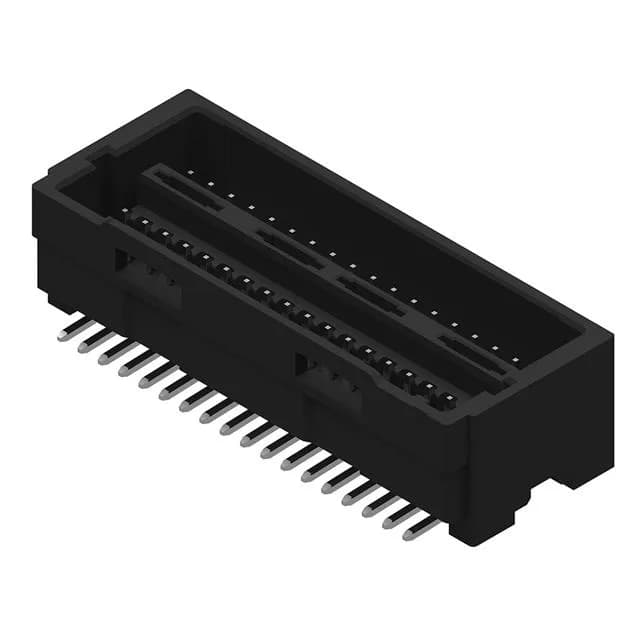

Molex 2016450121 Spot-On 1.5 Header – 12 Pos, 1.50 mm Pitch

MPN2016450121
Active

Molex Spot-On 1.5 201645 series, 12-position dual-row shrouded header, 1.50 mm pitch, surface-mount solder termination, latch holder, tin-plated square pins, UL94 V-0 housing.

$1.0300Ref. price · indicative, final on quote
Molex 2016450121 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSpot-On 1.5 201645
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2016450121 key specifications
ParameterValue
SeriesSpot-On 1.5 201645
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Voltage rating100V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.354\" (9.00mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

2016450121 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.059\" (1.50mm)
Positions12
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

The 2016450121: This is a 12-position, dual-row header from the Molex Spot-On 1.5 201645 series.

Termination is solder to surface-mount pads — no through-hole, so the board requires no drilled holes under the header. The part is packaged in Tape & Reel (also available in Cut Tape) and includes a Pick and Place feature, meaning the vacuum nozzle has a flat pick-up area on top of the shroud. This makes it suitable for automated assembly lines where the reel feeds directly into the placement machine.

This header mates with a Spot-On 1.5 receptacle housing (Molex series 201646) that accepts crimp terminals. The latch holder on the header engages a corresponding ramp on the receptacle for the locking feature.

Frequently asked questions

Where can I buy Molex 2016450121 and check stock?

The 2016450121 is an active Molex part, sourced through our independent distribution network. We do not maintain live stock on the website — submit an RFQ for your target quantity, and we will confirm availability and current pricing at quote time.

What is the mating connector for Molex 2016450121?

The mating half is a Spot-On 1.5 receptacle housing from the Molex 201646 series, 12-position, dual-row, with a latch ramp that engages the header's latch holder. Use crimp terminals (Molex series 201647) for the wire side.

Is Molex 2016450121 lead-free and RoHS compliant?

Yes, it is ROHS3 compliant — no restricted substances above the exemption thresholds. The tin plating on contacts is lead-free per the ROHS directive.
