Mini50 Inline Header — 8-Way, Gray, CPA-Equipped

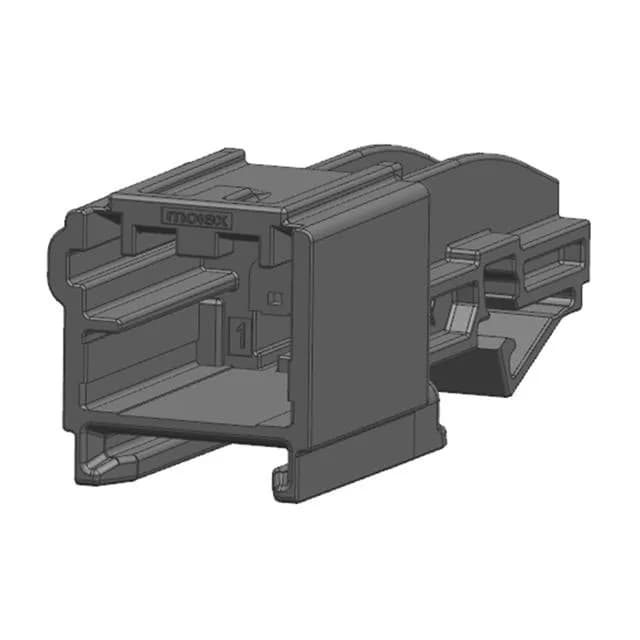

The Molex 2037000082 is an 8-circuit male header from the Mini50 203700 series, designed for in-line wire-to-wire interconnects in space-constrained automotive and industrial harnesses. The 2.00mm pitch packs eight circuits into a single row, keeping the connector narrow enough for tight routing paths. The header is free-hanging (in-line) and terminates via crimp — no PCB footprint needed, so it lands directly in a cable assembly. The gray glass-filled PBT housing carries the Mini50 keying and is RoHS3 compliant.
This header ships as a housing only — the male pin contacts are not included.
The 2037000082 mates with the corresponding Mini50 female receptacle housing of the same 2.00mm pitch and 8-circuit count. The latch holder fastening type secures the pair, and the CPA feature adds a secondary lock that must be engaged before the connector is considered fully mated — a requirement in USCAR-class applications. The single-row layout and keying ensure correct orientation; a gray housing is standard for this position count in the series.
