Molex 2053380002 — Pin Headers

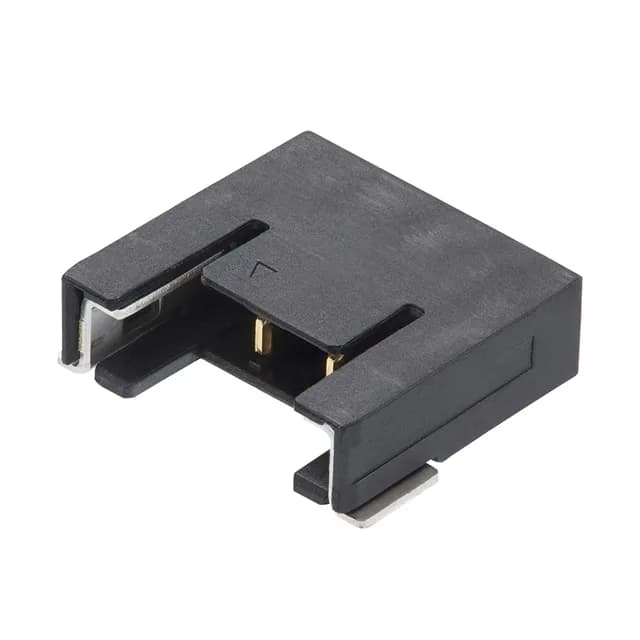

Molex Pico-Lock 2053380002

MPN2053380002
Active

Molex Pico-Lock 2053380002, 2-circuit 0.079" (2.00 mm) pitch right-angle SMT header, male blade contacts, gold-plated (3.94 µin mating), 6.5 A per circuit at 250 V, -40 to 105 °C, UL94 V-0, Tape & Reel.

$1.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPico-Lock 205338
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2053380002 key specifications
ParameterValue
SeriesPico-Lock 205338
TypeMale Blade
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating6.5A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.102\" (2.60mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2053380002 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeRectangular
Rows1
Pitch0.079\" (2.00mm)
Positions2
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - mating3.94µin (0.100µm)

Product details

Product Introduction

The Molex 2053380002 is a 2-circuit member of the Pico-Lock 205338 series — a 2.00 mm pitch, right-angle SMT header designed for board-to-cable/wire interconnects. It carries male blade contacts with gold plating on both the mating and post surfaces, rated for 6.5 A per circuit at 250 V, and operates from -40 °C to 105 °C. The shrouded 4-wall housing in UL94 V-0 nylon and a detent lock fastening make it suited for general-purpose, automotive, industrial, and telecom applications where a compact, secure wire-to-board connection is needed.

Mounting and Assembly Considerations

Supplied in Tape & Reel packaging, it is ready for automated pick-and-place assembly.

Frequently asked questions

What is the pitch of Molex 2053380002?

The pitch is 0.079" (2.00 mm).

Is Molex 2053380002 available via RFQ confirmation?

Stock levels vary by distributor and time of inquiry. Submit an RFQ for current availability and lead time.

What is the current rating of Molex 2053380002?

The current rating is 6.5 A per circuit.

Is Molex 2053380002 compatible with Pico-Lock receptacles?

Yes, this header mates with the matching Pico-Lock receptacle housing from the same series.
