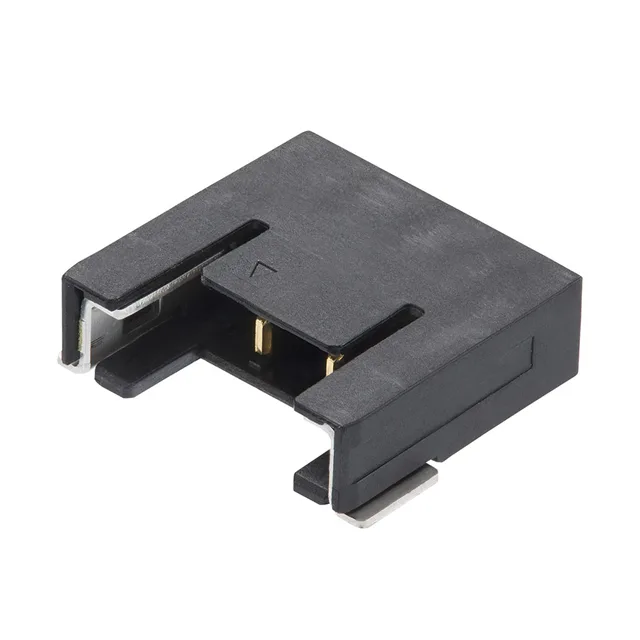

Molex 2053380003
MPN2053380003
Active
PICO-LOCK 2.0 W/B HEADER ASSY ET
$1.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPico-Lock 205338
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pico-Lock 205338 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 6.5A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.102\" (2.60mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
