22-Circuit CONNTAK50 Receptacle Housing

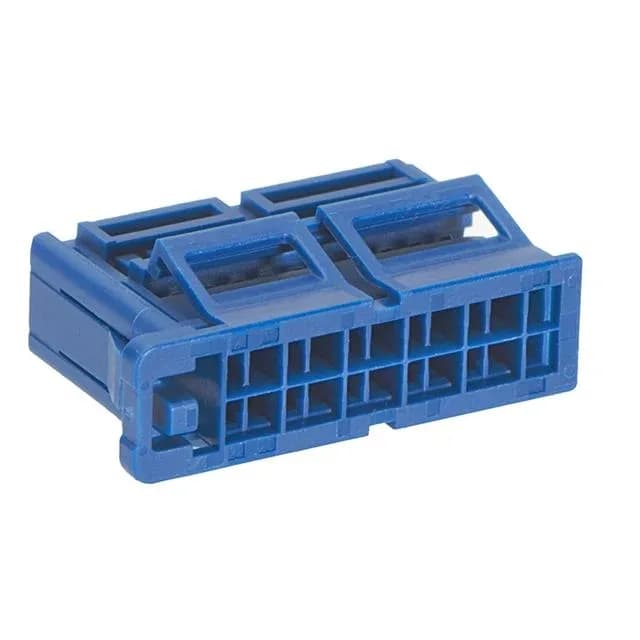

The Molex 2058252223 is a 22-position, dual-row receptacle housing from the CONNTAK50 series. It uses a 0.071" (1.80mm) pitch with a 0.059" (1.50mm) row spacing, giving a compact footprint for wire-to-board or wire-to-wire harnesses in space-constrained assemblies. The latch holder locks audibly when the mating header is fully seated, giving a tactile confirmation on the assembly line.
Pitch, Rows, and Circuit Count
At 22 circuits in two rows, this housing matches a 22-position BOM line exactly. The 1.80mm pitch is tighter than the 2.54mm common on older wire-to-board families, which means the mating header footprint takes up less board edge — useful when routing density is the constraint. The 1.50mm row spacing keeps the two rows close, so the overall connector width stays under 12 mm.
Mating and Contact Fit
This receptacle housing accepts female socket contacts crimped to the wire. The matching male header (same CONNTAK50 series, 1.80mm pitch) completes the connection.
