The Molex 2065230123 is a 12-position receptacle housing from the Mini50 206523 series, designed for wire-to-board interconnect in space-constrained automotive and industrial harness assemblies. The 2.00 mm pitch and 2-row layout pack 12 circuits into a compact footprint, while the gray PBT housing provides visual keying on the assembly line.

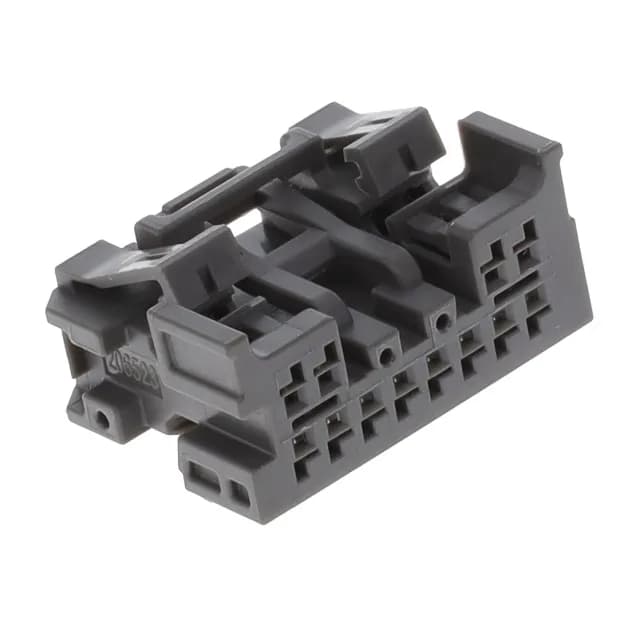

Molex Mini50 2065230123 Receptacle Housing, 12 Pos, 2.00mm
MPN2065230123
Active
Molex Mini50 2065230123, receptacle housing, 12 positions, 2 rows, 0.079" (2.00mm) pitch, gray, latch lock, crimp termination, free hanging.
$1.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini50 206523
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini50 206523 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 100°C |
| Color | Gray |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 12 |
Product details
Frequently asked questions
What is the pitch of the Molex 2065230123?
The pitch is 0.079" (2.00 mm), which matches the standard Mini50 footprint for board layout.
Is the 2065230123 RoHS compliant?
Yes, it is ROHS3 compliant.
Does the 2065230123 have a latch lock?
Yes, the fastening type is latch lock, which provides positive retention against vibration in mated assemblies.
