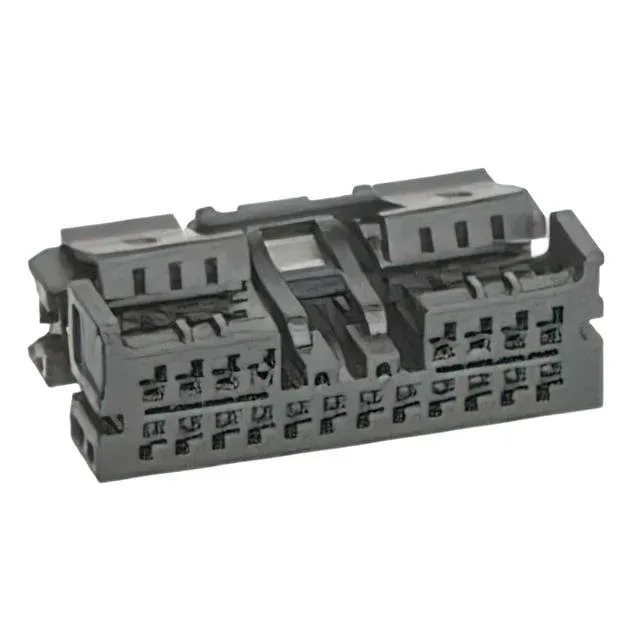

2065230202 — Molex product photo
Molex

Molex 2065230202 Mini50 Receptacle, 20 Circuit, Gray

MPN2065230202
Active

Molex Mini50 206523 Gen II receptacle, 20 circuits, 2.00mm pitch, dual-row, gray PBT housing, latch lock, crimp termination, free-hanging, -40°C to 100°C

$1.5400Ref. price · indicative, final on quote
2065230202 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2065230202 Technical Specifications
ParameterValue
SeriesMini50 206523
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 100°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT)
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.087\" (2.20mm)
Rows2
Contact terminationCrimp
Positions20

Product details

20-circuit dual-row receptacle for dense harness builds

The 2065230202 is a 20-position receptacle from the Molex Mini50 206523 series, built on a 2.00mm pitch with a dual-row layout (0.087" row spacing). That pitch and row count pack 20 circuits into a housing that stays narrow enough for tight wire-to-board junctions in instrument clusters, door modules, and other space-constrained harnesses.

What mates and what terminates

This receptacle accepts female socket contacts (crimp termination) and is designed for free-hanging (in-line) mounting. That temperature range covers underhood and outdoor cabinet environments without requiring a premium material upgrade.

Frequently asked questions

What is the pitch of Molex 2065230202?

The pitch is 0.079" (2.00mm) with a row spacing of 0.087" (2.20mm).

What is the difference between 2065230201 and 2065230202?

The 2065230202 is a 20-position receptacle; the 2065230201 is a 16-position version in the same Mini50 206523 series, same pitch and row spacing. The circuit count is the only difference — confirm your BOM position count before substituting.

What connector mates with 2065230202?

It mates with a Mini50 header of matching circuit count and keying. Use the base product number 206523 to cross-reference the mating header in the same series.
