Molex 2065230243 — Connector Housings

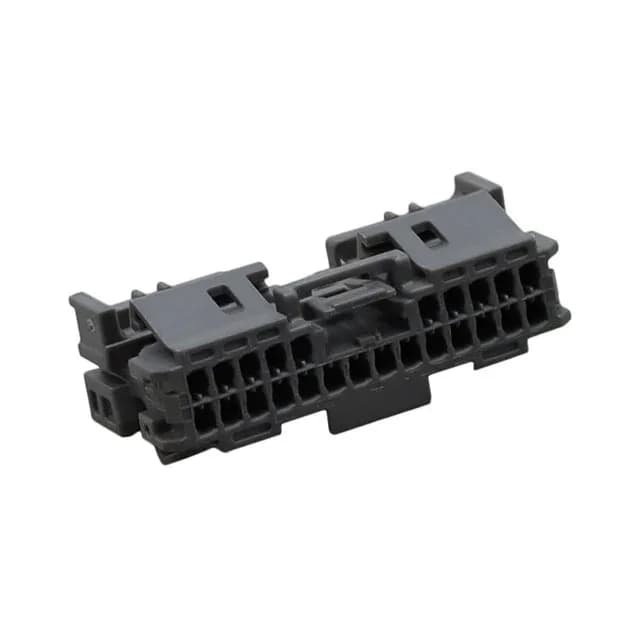

Molex Mini50 2065230243 Receptacle Housing, 24 Pos, 2.00mm

MPN2065230243
Active

Molex Mini50 206523 series receptacle housing, 2065230243, 24 positions, 2 rows, 2.00mm pitch, gray PBT, latch lock, crimp termination, free hanging.

$1.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini50 206523
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2065230243 specifications
ParameterValue
SeriesMini50 206523
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 100°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Pitch0.079\" (2.00mm)
PackageBag
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions24

Product details

The Molex 2065230243 is a 24-position receptacle housing from the Mini50 206523 series, designed for wire-to-board interconnects in space-constrained automotive and industrial harnesses.

It mates with the corresponding Mini50 206523 series pin header — the latch lock engages audibly when fully seated. The crimp terminals are ordered separately; the 206523 series uses a specific Mini50 female terminal (Molex part family 206523-xxxx or equivalent) sized for the wire gauge the harness calls for. The housing is keyed and polarized, so the receptacle only mates one way with its header — no risk of a reversed connection on the line.

Frequently asked questions

Where can I buy the Molex 2065230243 and what is the current price?

Submit an RFQ for your BOM quantity to get a firm quote.

What is the mating connector for Molex 2065230243?

The 2065230243 receptacle housing mates with the corresponding Mini50 206523 series pin header (male header). The latch lock on the housing engages with the header's locking ramp for vibration-resistant retention.

What terminals and contacts fit the 2065230243 housing?

This housing accepts female socket crimp terminals from the Mini50 206523 terminal family. The specific terminal part number depends on the wire gauge — the 206523 series terminal catalog covers the range. Terminals are ordered separately from the housing.

Is the 2065230243 polarized?

Yes, the housing is keyed and polarized — the receptacle only mates in one orientation with its matching header, preventing reverse insertion on the harness.
