20-Circuit Mini50 Receptacle with CPA — Harness-Side Fit

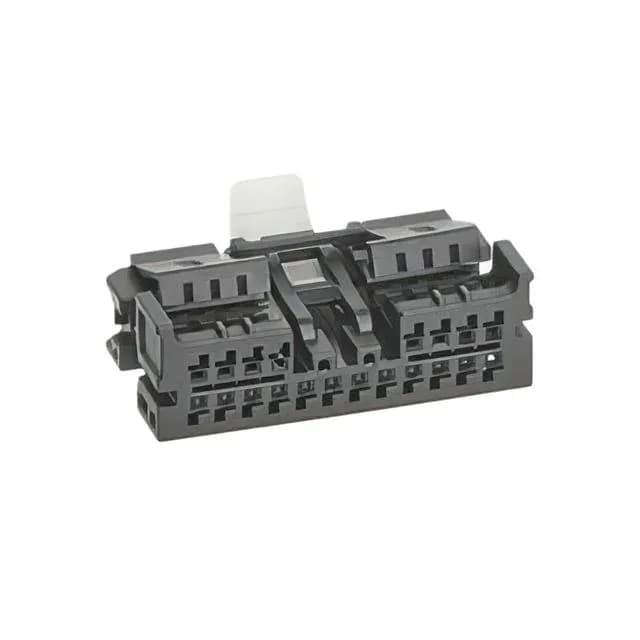

The Molex 2065232201 is a 20-position, dual-row receptacle from the Mini50 206523 Gen II series, designed for wire-to-board interconnects in space-constrained automotive and industrial harness assemblies. Its 0.079" (2.00mm) pitch doubles the circuit density over traditional 0.100" connectors, letting you pack 20 circuits into a footprint that would normally hold 10. This matters on a production line or in a service bay where an incomplete mate can pass a continuity check but fail under vibration.
Termination and Terminal Compatibility
This receptacle accepts standard Mini50 female crimp terminals — the same 0.50 mm terminal family used across the Mini50 system. The crimp termination gives a gas-tight connection to 20-24 AWG wire when paired with the correct Molex hand tool or automatic applicator. The housing does not ship with terminals installed; you order the terminals separately and crimp them onto the wire ends before inserting into the cavity. The dual-row layout with 0.079" row spacing keeps the terminal insertion tool access clear on both rows.
The 2065232201 mates with a Mini50 206523-series header — look for a 20-circuit, dual-row, 2.00mm pitch header with latch lock. The latch lock on this receptacle clicks onto the header's locking ramp; the CPA then slides over the latch to prevent accidental disengagement. For a board-side mate, the matching header is a through-hole or SMT part in the same series.
Material and Environmental Range
The black color is standard for the Mini50 series. ROHS3 compliance is on record.
