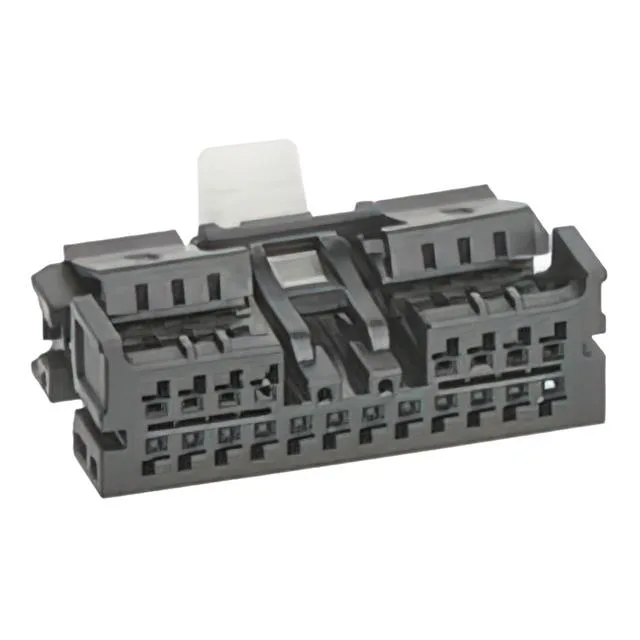

The Molex 2065232203 is a 20-circuit Mini50 Gen II receptacle housing with integrated Connector Position Assurance (CPA). The CPA locks the connector pair once fully seated, preventing partial mate that can cause intermittent contact in high-vibration environments like engine compartments and transmission interfaces. This is a receptacle half — mates with the corresponding Mini50 Gen II header. The 20-position count lines up with a 20-circuit harness; the CPA feature means the assembly is meant for a safety-critical or high-vibration circuit path where a loose connector is not an option.
Checking the Fit: What the CPA Means for Your Assembly
The CPA is the distinguishing feature here — it is a secondary lock that slides over the primary latch after mate. A harness builder should verify the mating header has the CPA-compatible ramp or slot; not all Mini50 Gen II headers accept the CPA actuator. For field-service techs: the CPA can be disengaged with a small flat-blade tool to unmate, but repeated CPA cycling wears the actuator — plan for one-time assembly or limited service access.
