Molex 2068320621 — Pin Headers

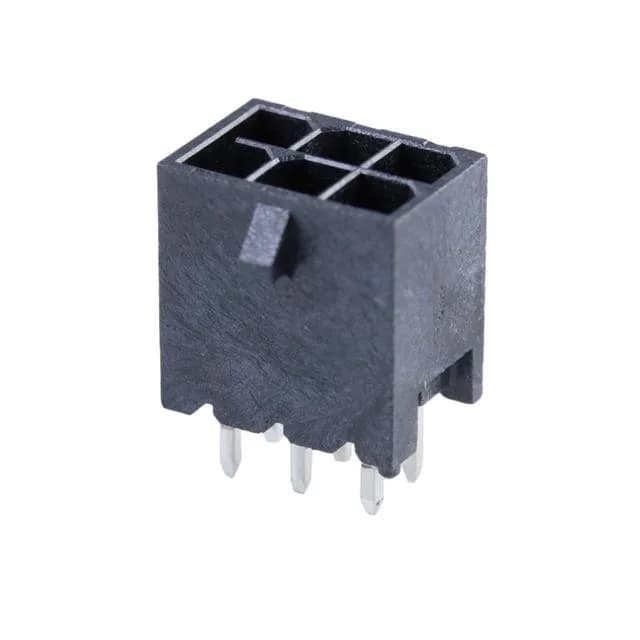

Molex Micro-Fit+ 2068320621 Header, 6 Pos, 3.00mm, 12A

MPN2068320621
Active

Molex Micro-Fit+ 2068320621 header, Board to Cable/Wire, 6 positions (2x3), 0.118" (3.00mm) pitch, 12A per circuit, 600VAC/DC, tin-plated male pin, shrouded 4-wall, through-hole solder, black LCP, UL94 V-0.

$2.0600Ref. price · indicative, final on quote
Molex 2068320621 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit+ 206832
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2068320621 key specifications
ParameterValue
SeriesMicro-Fit+ 206832
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current rating12A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

2068320621 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions6
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin

Product details

Product Introduction

The Molex 2068320621 is the 6-circuit, dual-row vertical header in the Micro-Fit+ 206832 series, designed for board-to-wire power interconnects. Typical applications include power distribution inside servers, automotive harness junctions, and industrial control cabinets where the locking ramp holds the pair under vibration.

Rated 12 A per circuit at 3.00 mm pitch, 600 VAC/DC. Tin plating on mating and post surfaces.

The LCP glass-filled insulator resists high-temperature soldering profiles without warping.

Frequently asked questions

What is the pitch and position count of the Molex 2068320621?

The 2068320621 is a 6-position (2x3) header with a 0.118" (3.00 mm) pitch and the same row spacing, so the PCB footprint is a 2x3 grid on 3.00 mm centers.

Where can I buy the Molex 2068320621?

The 2068320621 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
