Board-to-wire header for harness integration

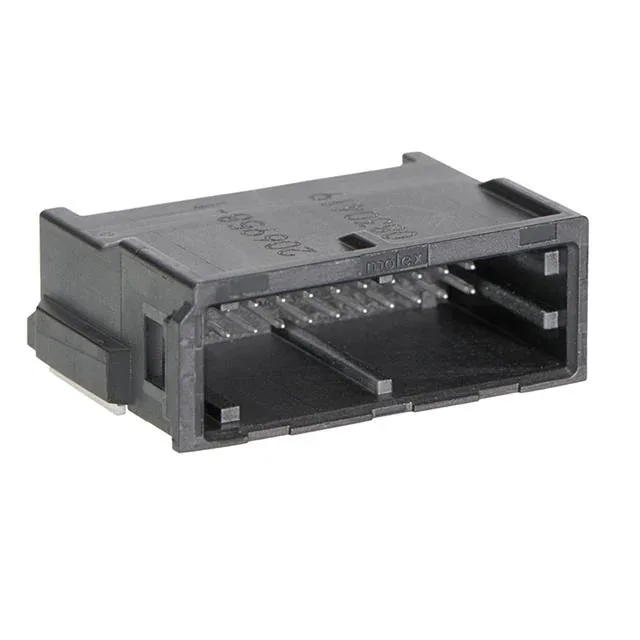

The Molex 2069585201 is a CONNTAK50 series header designed for board-to-cable/wire interconnects. It carries 22 positions in a 2-row layout, with 20 circuits loaded — the two unloaded positions are present in the housing but lack contacts, which affects the mating half count.
The 1.80 mm pitch and 1.50 mm row spacing require a PCB layout with 0.071-inch and 0.059-inch pad centers respectively. Insulation height of 0.413 inches (10.49 mm) above the board surface sets the clearance to adjacent components.
Termination is solder — the SMT tails reflow onto the PCB pads. The square male pins measure 0.327 inches (8.30 mm) in mating length, providing sufficient wipe for reliable contact.
No official cross-reference or pin-compatible alternative is listed from Molex or other manufacturers. The CONNTAK50 series is specific to this pitch and contact layout.
