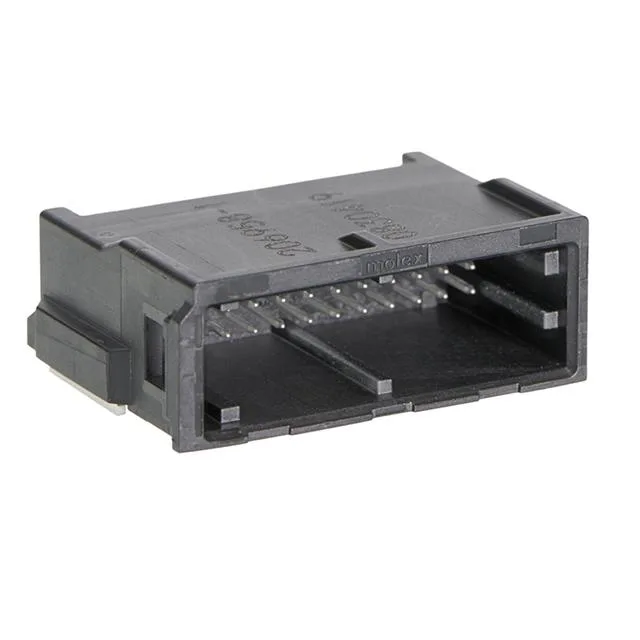

2069585202 — Molex product photo
Molex

Molex 2069585202 CONNTAK50 Header 1.80mm Pitch SMT Right

MPN2069585202
Active

Molex CONNTAK50 206958 series header, 2069585202, 22-position (20 loaded), 1.80mm pitch, surface mount right-angle, shrouded 4-wall, tin-plated male pins, rated 3A at 14VAC/DC.

$1.8700Ref. price · indicative, final on quote
2069585202 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2069585202 Technical Specifications
ParameterValue
SeriesCONNTAK50 206958
GenderMale Pin
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating14VAC/DC
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorNatural
Insulation height0.413\" (10.49mm)
Insulation materialPolyamide (PA9T), Nylon 9T, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.071\" (1.80mm)
Positions22
Row spacing - mating0.059\" (1.50mm)
Contact finish - matingTin
Contact length - mating0.327\" (8.30mm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

1.80 mm pitch right-angle header for board-to-cable harnesses

Molex CONNTAK50 206958 series header, order code 2069585202, is a 22-position surface mount right-angle male pin header with 20 circuits loaded. The 1.80 mm pitch sets the board footprint and the per-contact current ceiling — at 3 A the temperature rise stays within the UL94 V-0 glass-filled PA9T housing limit.

What mates with this shrouded header

This is a shrouded 4-wall header with push-pull fastening — it accepts the matching CONNTAK50 receptacle housing with crimp terminals. Two rows with a 0.059-inch (1.50 mm) row spacing keep the mated pair compact.

Tin contacts rated for signal duty

The 3 A per-contact rating at 14 VAC/DC suits signal-level loads, not power distribution.

Frequently asked questions

What is the pitch and mounting type of Molex 2069585202?

The mating pitch is 0.071 inch (1.80 mm). It is a surface mount right-angle header — the connector sits perpendicular to the PCB, with solder tails on the bottom side for reflow assembly.
