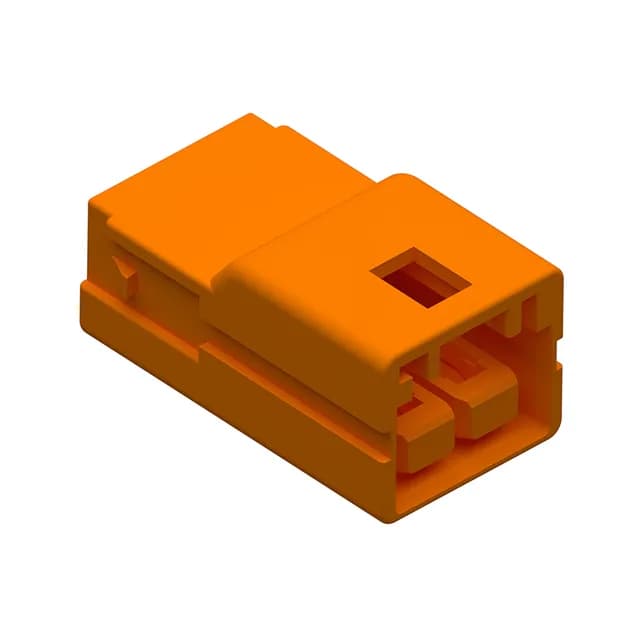

Molex CP-4.5 206996 series, receptacle housing, 2069962200, 2 positions, 1 row, 4.50mm pitch, crimp termination, free-hanging, latch holder, orange PA66, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CP-4.5 206996 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Color | Orange |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.177\" (4.50mm) |
| Package | Bag |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The Molex 2069962200 is a 2-circuit receptacle housing from the CP-4.5 206996 series, designed as a free-hanging (in-line) wire-to-wire or wire-to-board interconnect.
The housing accepts the standard CP-4.5 crimp terminals (Molex order codes 206996-1xxx or equivalent); the terminal wire range and plating grade (tin vs gold) should be selected based on the current duty and mating cycle count.
No stock-holding or shelf-price is published.
The 2069962200 accepts female socket crimp terminals from the CP-4.5 series. The exact terminal order code depends on your wire gauge and plating preference; the housing itself does not include contacts.
