Molex 2077600881 — Pin Headers

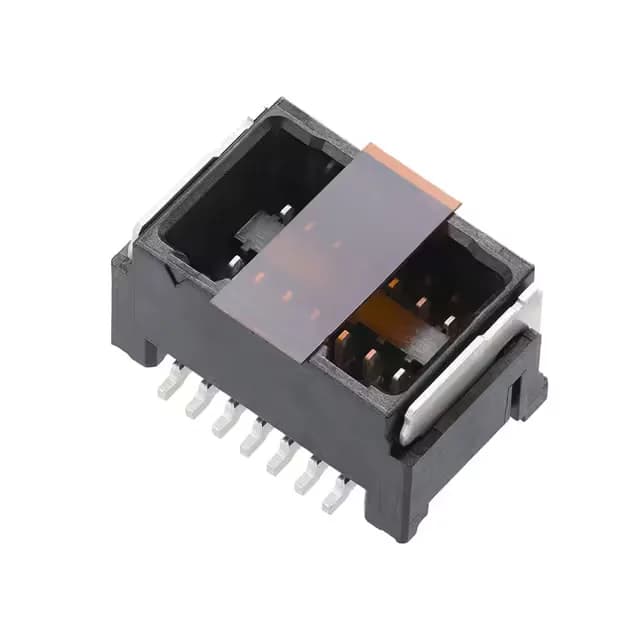

Molex 2077600881 Micro-Lock PLUS Header, 1.25mm, 8 Pos, SMT

MPN2077600881
Active

Molex Micro-Lock PLUS 207760 series PCB header, 2077600881, 8 positions, 1.25 mm pitch, shrouded, latch holder, SMT, Tin-Bismuth contacts, UL94 V-0, -40°C to 105°C.

$1.6500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Lock PLUS 207760
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2077600881 key specifications
ParameterValue
SeriesMicro-Lock PLUS 207760
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Voltage rating50VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.285\" (7.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2077600881 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
FeaturesPick and Place, Solder Retention
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows2
Pitch0.049\" (1.25mm)
Positions8
Contact finish - postTin-Bismuth
Contact finish - matingTin-Bismuth

Product details

1.25 mm Pitch, 8-Position Shrouded Header for Cable-to-Board

The 2077600881: Its 1.25 mm pitch and surface-mount termination suit it for dense PCB layouts where space is tight. Rated at 50 VAC/DC and with current capacity that varies by wire gauge, this header is intended for low-voltage signal and moderate-power distribution inside equipment enclosures.

This header is terminated by solder to surface-mount pads, with features for pick-and-place vacuum pickup and solder retention aids. The Tape & Reel packaging (Cut Tape also available) supports automated assembly lines, reducing manual handling.

Frequently asked questions

What is the mating connector for the 2077600881?

The specific mating part number depends on the number of circuits and wire gauge; the receptacle uses the same 1.25 mm pitch and latch holder locking system.

Is the 2077600881 RoHS compliant?

Yes, the manufacturer lists it as ROHS3 compliant. The Tin-Bismuth contact finish is RoHS-compatible.

What is the current rating of the 2077600881?

Derate current based on the wire size and ambient temperature per the application note for the Micro-Lock PLUS system.
