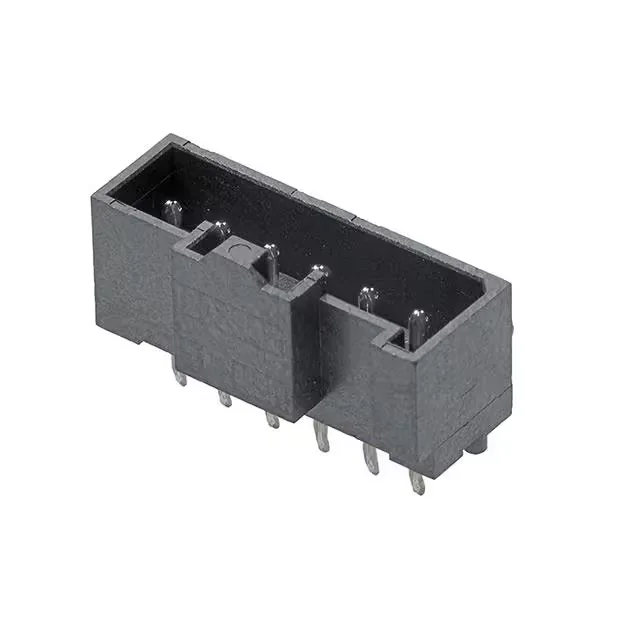

Molex L1NK 250 207843 series, 6-position single-row shrouded header, 2.50mm pitch, through-hole solder termination, tin-plated male pins, UL94 V-0 LCP housing, rated 250 VAC/DC, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | L1NK 250 207843 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.264\" (6.70mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Box |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.136\" (3.46mm) |
| Contact finish - mating | Tin |
The 207843-0006: The brass alloy contact material provides adequate conductivity for signal and low-power circuits typical of a 2.50mm pitch header.
The insulation height of 0.264" (6.70mm) and post length of 0.136" (3.46mm) define the z-height budget on the board — the post must clear the PCB thickness and solder fillet.
This is a shrouded male header from the L1NK 250 series. It mates with a L1NK 250 receptacle housing that accepts the corresponding crimp terminals. The 2.50mm pitch and 6-position single-row layout define the mating half — confirm the receptacle part number against your harness design.
Yes, it is ROHS3 compliant.
