Within the L1NK 250 207843 series, the 5-position 2078430005 shares the same 0.098" (2.50mm) pitch, single-row layout, and shrouded 4-wall design with the functionally identical 207843-0005 — both are active, tin-plated, through-hole headers with a latch holder.

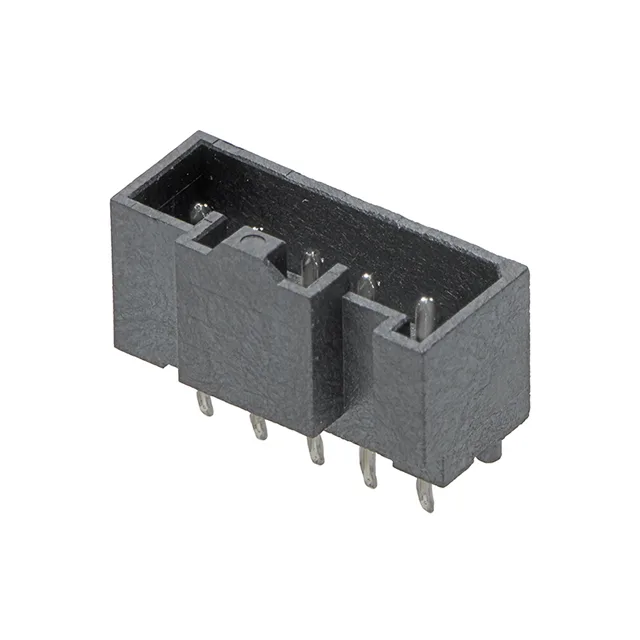

Molex 2078430005 L1NK 250 Header, 5-Pos 2.50mm
MPN2078430005
Active
Molex L1NK 250 207843 header, order code 2078430005, 5 positions, single row, 0.098" (2.50mm) pitch, 250VAC/DC, tin-plated mating contacts, through-hole, solder termination.
$0.9700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | L1NK 250 207843 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.264\" (6.70mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.136\" (3.46mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the pitch and position count of 2078430005?
It is a 5-position, single-row header with a 0.098" (2.50mm) mating pitch.
