Board-to-Wire Header for Tight Spaces

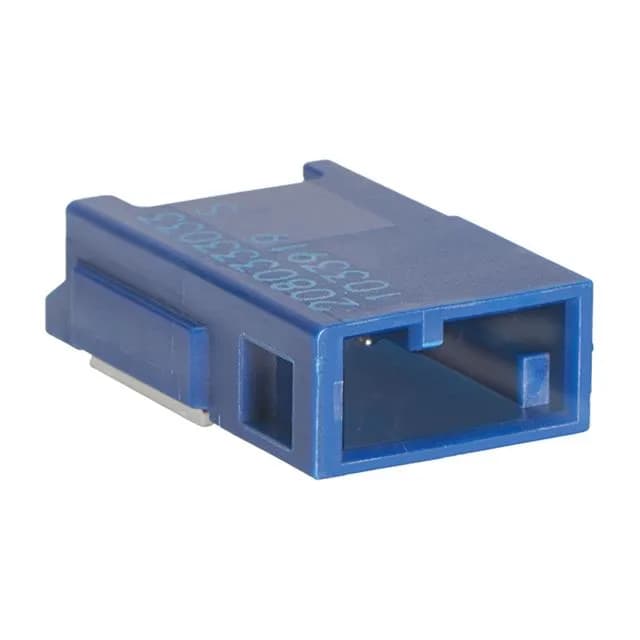

This Molex CONNTAK50 2080333033 is a 3-position, single-row header that connects a PCB to a wire harness via a 1.80mm pitch, surface-mount right-angle footprint. The shrouded 4-wall design protects the male pins during mating and prevents misalignment, while the latch holder provides a positive lock for vibration resistance. Rated for 14VAC/DC, with current capacity dependent on the attached wire gauge. The tin-plated contacts (39.4µin/1.00µm) are suited for moderate mating-cycle applications in controlled environments.
SMT Right-Angle Footprint and Mating Half
The 1.80mm pitch and single-row layout keep the board footprint compact. This header mates with a CONNTAK50 receptacle housing (sold separately) that accepts the corresponding crimp terminals. The latch holder on the header engages with the receptacle's locking ramp for a secure connection.
Available through independent distribution channels. Quantities and lead time are confirmed at the time of RFQ; no stock-holding claim is made here.
