Active sourcing for a 6-position board-to-wire header

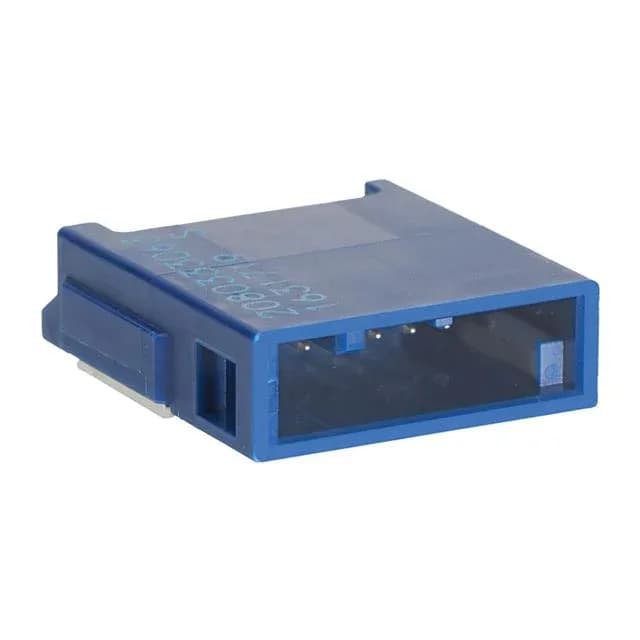

The 2080333063 is an active Molex CONNTAK50 header — 6 circuits in a single row, 1.80 mm pitch, shrouded on all four walls.
What the 1.80 mm pitch and right-angle SMT mean for the board
The 1.80 mm pitch is narrower than the common 2.54 mm, so the footprint takes less board space but needs a matching CONNTAK50 receptacle. The right-angle orientation puts the mating axis parallel to the board surface — plan for the cable exit direction early in the layout to avoid clearance conflicts with adjacent components. Surface-mount soldering reflows the header during the same pass as other SMT parts.
Mating half and harness fit
This header mates with a CONNTAK50 receptacle housing (Molex series 208033) that accepts crimp terminals.
