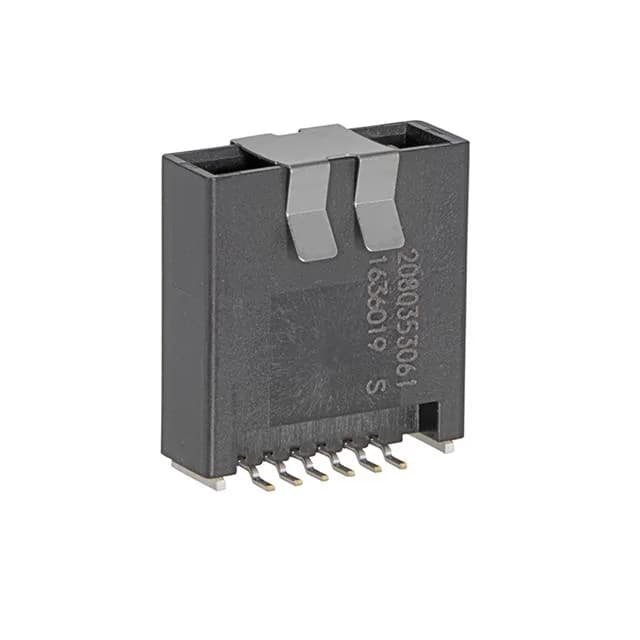

Molex CONNTAK50 208035 series, single-row header, 6 circuits, 1.80 mm pitch, SMT, shrouded 4-wall, latch holder, tin-plated male pins, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CONNTAK50 208035 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 14VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.748\" (19.00mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.071\" (1.80mm) |
| Positions | 6 |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 2080353061: The 1.80 mm pitch sets the board footprint for a 6-circuit wire-to-board interconnect — the SMT tails sit on 1.80 mm centers, so the PCB layout gets a compact single-row keep-out zone. Rated for 14 VAC/DC — this is a signal-level or low-power interconnect, not a power bus.
This header mates with the CONNTAK50 receptacle housing (crimp terminals, wire side).
The 2080353061 is sourced through independent distribution against an RFQ. No stock-holding claim is made — each order is sourced per your requirement.
The mating half is a CONNTAK50 receptacle housing (crimp terminal type) with a matching latch ramp. The header's 1.80 mm pitch and single-row 6-circuit layout must align with the receptacle's pinout — confirm the receptacle order code against the harness design before committing.
