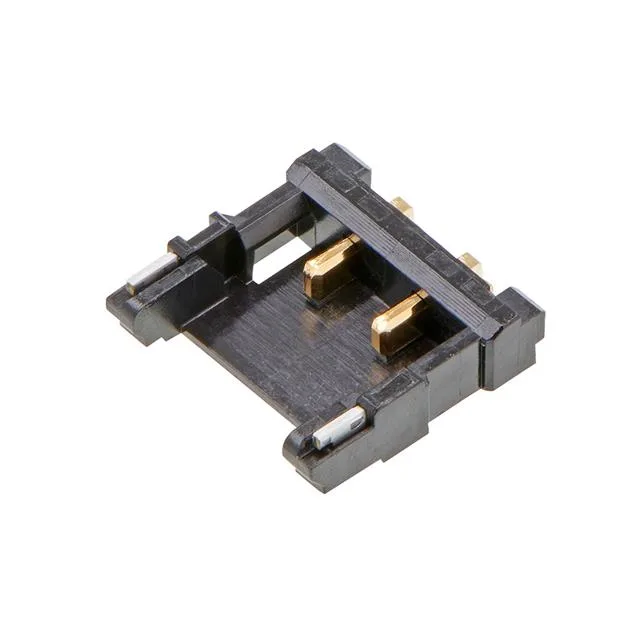

Molex Pico-EZmate 208294 series plug, order code 2082940020, 2 positions, single row, 1.80 mm pitch, 5 A per contact, 250 V, gold-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Pico-EZmate 208294 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Plug |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC/DC |
| Current rating | 5A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.063\" (1.60mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.071\" (1.80mm) |
| Positions | 2 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
The 2082940020 is the 2-circuit member of Molex's Pico-EZmate 208294 series board-to-cable plug line. Rated 5 A per contact at 250 V with gold-plated mating contacts, the plug suits low-power signal and power delivery in tight board-edge layouts.
The listed style is Board to Cable/Wire.
