Molex Pico-EZmate 208294 series, 4-circuit plug, 1.80mm pitch, 5A per contact, gold-plated male blade contacts, push-pull latch, SMT right-angle, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Pico-EZmate 208294 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Plug |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC/DC |
| Current rating | 5A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.063\" (1.60mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.071\" (1.80mm) |
| Positions | 4 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.94µin (0.100µm) |

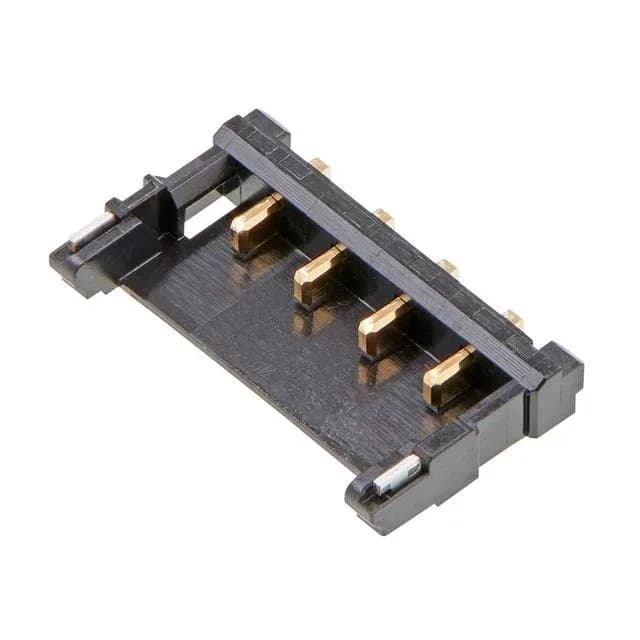

The 2082940040: This is a 4-circuit, 1.80mm-pitch plug from the Pico-EZmate 208294 series, designed for board-to-cable/wire applications. It carries 5A per contact at 250VAC/DC, with gold-on-gold mating surfaces (3.94µin gold over nickel on the contact face) for reliable low-resistance connections over repeated mate cycles. The push-pull latch and 4-wall shrouding protect the male blade contacts from damage during mating and provide a positive retention feel.
This is a plug (male blade contacts). It mates with a Pico-EZmate 1.80mm-pitch receptacle housing that accepts the corresponding female crimp terminals. Confirm the circuit count and keying with the receptacle part number before ordering.
