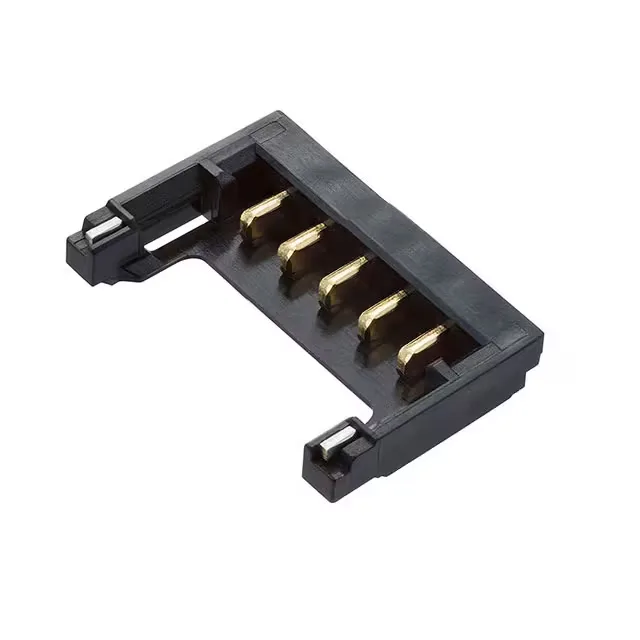

Molex 2121340005
MPN2121340005
Active
PICO-EZMATE PLUS1.0 PLUGASSY ETP
$1.18Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPico-EZmate Plus 212134
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pico-EZmate Plus 212134 |
| Type | Tab |
| Mounting | Surface Mount, Right Angle |
| Connector type | Plug |
| Fastening type | Friction Lock |
| Voltage rating | 50VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.047\" (1.20mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 5 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
