5-Position Micro-Fit+ Receptacle Housing for Wire Harness Builds

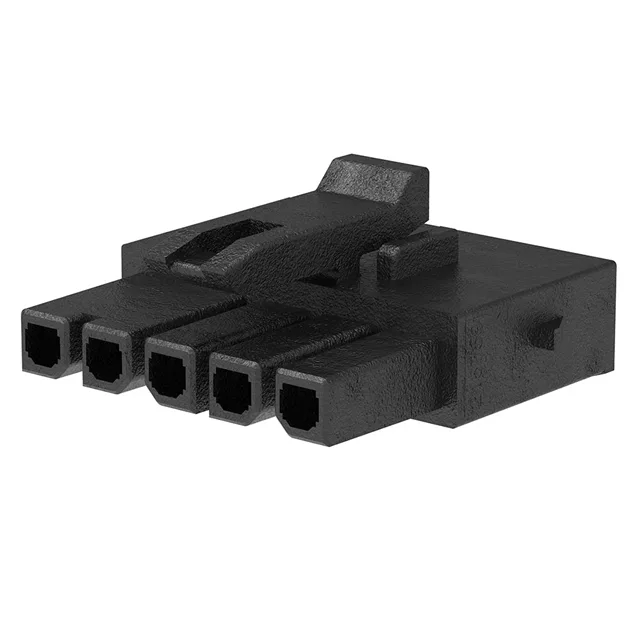

The Molex 2157591005 is a 5-circuit, single-row receptacle housing from the Micro-Fit+ 215759 series. It uses the standard 3.00 mm pitch that defines the Micro-Fit+ interconnect family, making it a direct mate for the matching 3.00 mm pin headers. The free-hanging (in-line) mounting suits it for wire-to-wire or wire-to-board harness runs where the receptacle floats rather than panel-mounts.
Glow Wire Compliant for Appliance Safety Certification
This housing carries glow wire compliance (IEC 60335-1), a mandatory requirement for connectors inside household appliances and similar equipment where a hot component must not sustain a flame. The PA66 insulation material is rated UL94 V-0 by extension of the series material system.
