Molex 2157602007 — Pin Headers

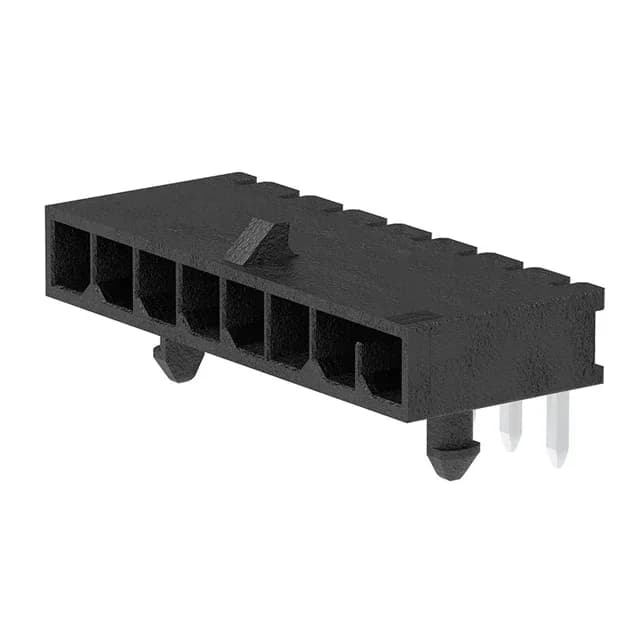

Molex 2157602007 Micro-Fit+ Header, 7-Pin, 3.00mm

MPN2157602007
Active

Molex Micro-Fit+ Versa 2157602007, single-row right-angle pin header, 7 circuits at 3.00 mm pitch, 15 µinch gold mating finish, shrouded 4-wall housing with board lock and glow wire compliance.

$2.5200Ref. price · indicative, final on quote
Molex 2157602007 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit+ 215760
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2157602007 key specifications
ParameterValue
SeriesMicro-Fit Plus Versa
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.173\" (4.40mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

2157602007 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
FeaturesBoard Lock, Glow Wire Compliant
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions7
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Pitch, Positions, and Contact Finish

The tin-plated solder tails keep the board-side connection cost-effective without compromising the contact interface.

Compliance and Environmental Range

Glow wire compliant per IEC 60695-2-11 — this is a requirement for household appliances and certain industrial equipment where the connector must withstand a glowing element without igniting. The LCP housing carries UL94 V-0 flammability rating. The voltage rating is 600 VAC/DC, suitable for signal and low-power distribution.

Frequently asked questions

What is the datasheet for molex 2157602007?

Engineers need to verify electrical and mechanical specifications before design-in.

What is the price and stock of molex 2157602007?

Buyers need immediate cost and availability to fill BOM lines.

Where can I buy molex 2157602007?

Transactional intent: customers need a reliable distributor to place an order.

What is the current rating of molex 2157602007?

Design engineers must ensure the header meets current requirements for the application.

What is the mating connector for molex 2157602007?

Compatibility is critical for ensuring proper connection in the system.

Does molex 2157602007 have glow wire compliance?

Glow wire compliance is a safety requirement in many appliance applications.
