Molex Mini-Lock 215932 header, order code 2159320570, 5 positions, single row, 0.098" (2.50 mm) pitch, 250 VAC/DC, tin-plated mating contacts, surface-mount right-angle, solder termination, locking ramp.
| Parameter | Value |
|---|---|
| Series | Mini-Lock 215932 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Cut Tape (CT) Bulk |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |

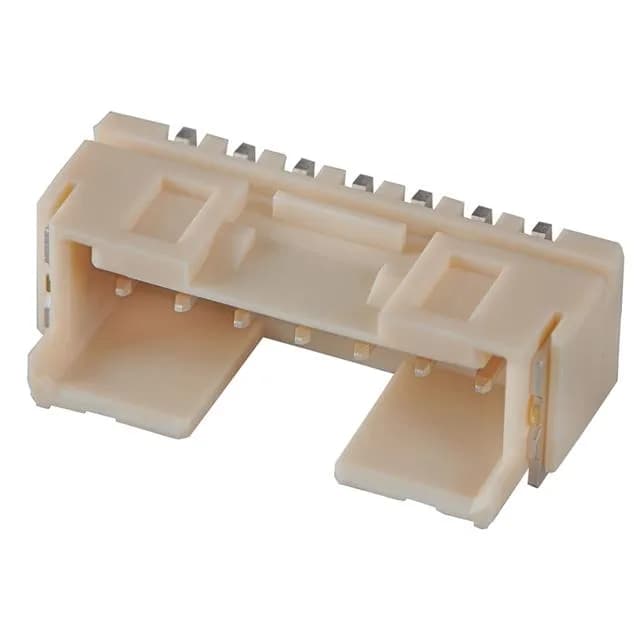

The 2159320570 is the 5-circuit member of Molex's Mini-Lock 215932 header line, a shrouded 4-wall board-to-wire header in a surface-mount right-angle orientation.
Solder retention features on the SMT tails add board-level hold during reflow and under cable strain.
The 2159320570 is a shrouded header that mates with a Mini-Lock 215932 series receptacle housing with locking ramp — confirm the position count and pitch match the application.
