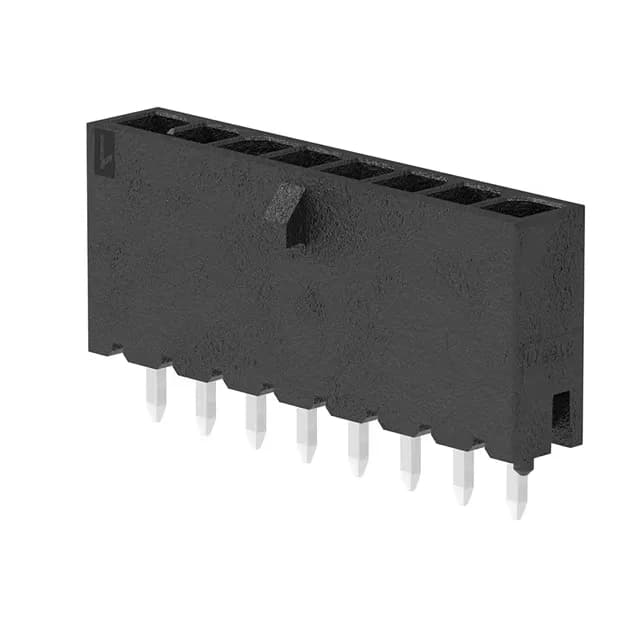

Molex Micro-Fit+ 2165713008, single-row through-hole header, 8 positions, 3.00 mm pitch, gold-plated male pins, shrouded 4-wall housing, locking ramp, glow wire compliant.
| Parameter | Value |
|---|---|
| Series | Micro-Fit Plus Versa |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Board Guide, Glow Wire Compliant |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
The 2165713008: This header mates with Micro-Fit+ crimp receptacle housings (sold separately) that accept 20-24 AWG wire. The gold mating finish (3.00 µinch) on the male pins ensures low contact resistance over repeated mating cycles — rated for a minimum of 500 cycles in the series.
Glow wire compliant per IEC 60335-1, a safety standard for household appliances. ROHS3 compliant.
Submit an RFQ for your BOM quantity.
Mates with Micro-Fit+ crimp receptacle housings (sold separately) that accept 20-24 AWG wire. The mating half is not included with this header.
